Front Bumper Fascia Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

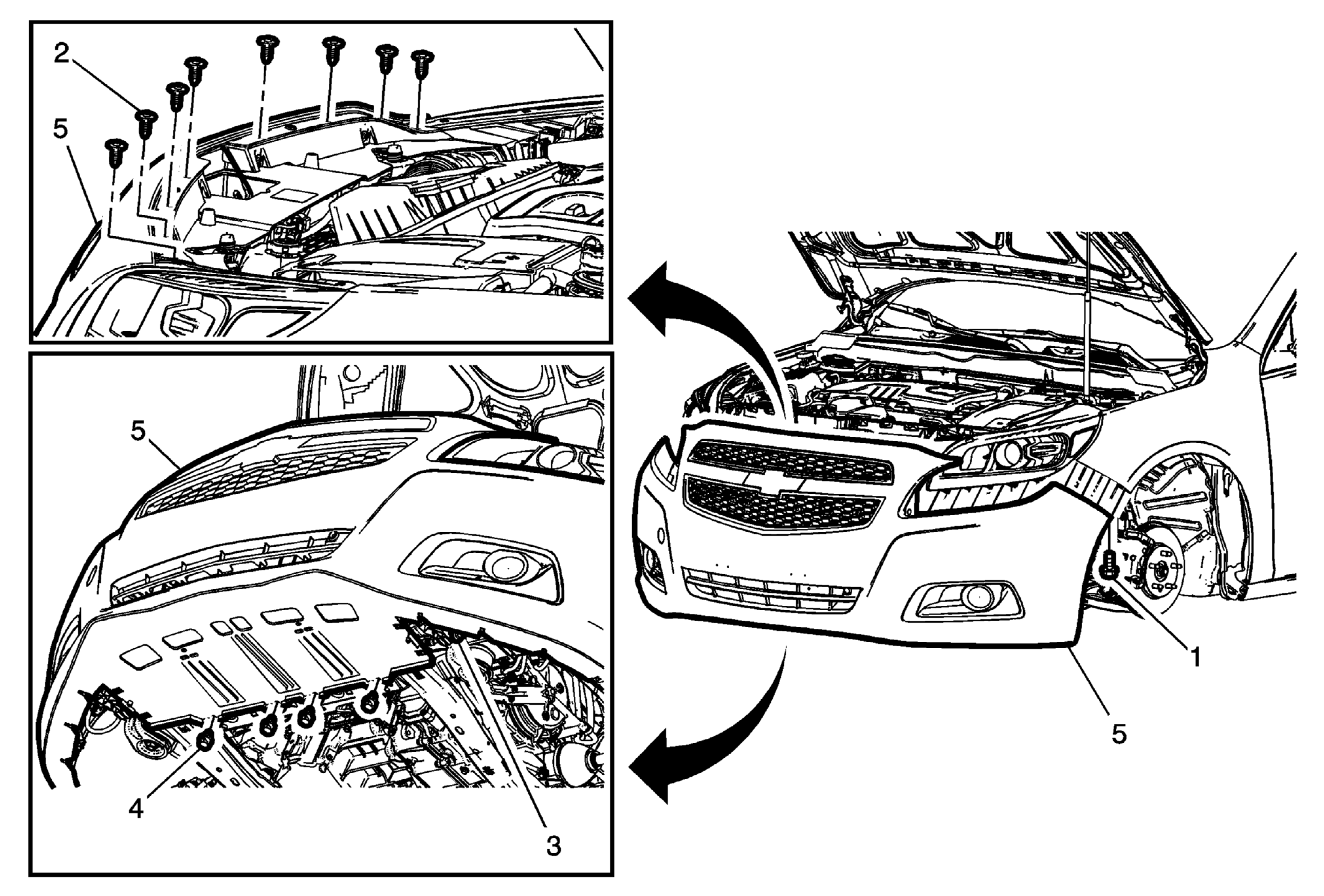

Fig 1: Front Bumper Fascia & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement (Left Side) and Front Wheelhouse Front Liner Replacement (Right Side) .
1	Front Bumper Fascia Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Bumper Fascia Top Screw (Qty: 8) Tighten 2.5 N.m (22 lb in)
3	Front Bumper Fascia Lower Impact Bar Rear Bolt (Qty: 2) Procedure Loosen the lower front fascia impact bar rear bolts. Do not remove. Tighten 25 N.m (18 lb ft)
4	Front Bumper Fascia Push-In Retainer (Qty: 4)
5	Front Bumper Fascia Procedure If equipped, remove the 2 bolts that are part of the shutter. These bolts support the shutter and attach to the frame. Carefully push a small nylon wedge between the fascia and the front fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia guide. Disconnect any electrical connectors. Disconnect any hoses. Transfer components as necessary.
