Front Wheelhouse Front Liner Replacement (Right Side)
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

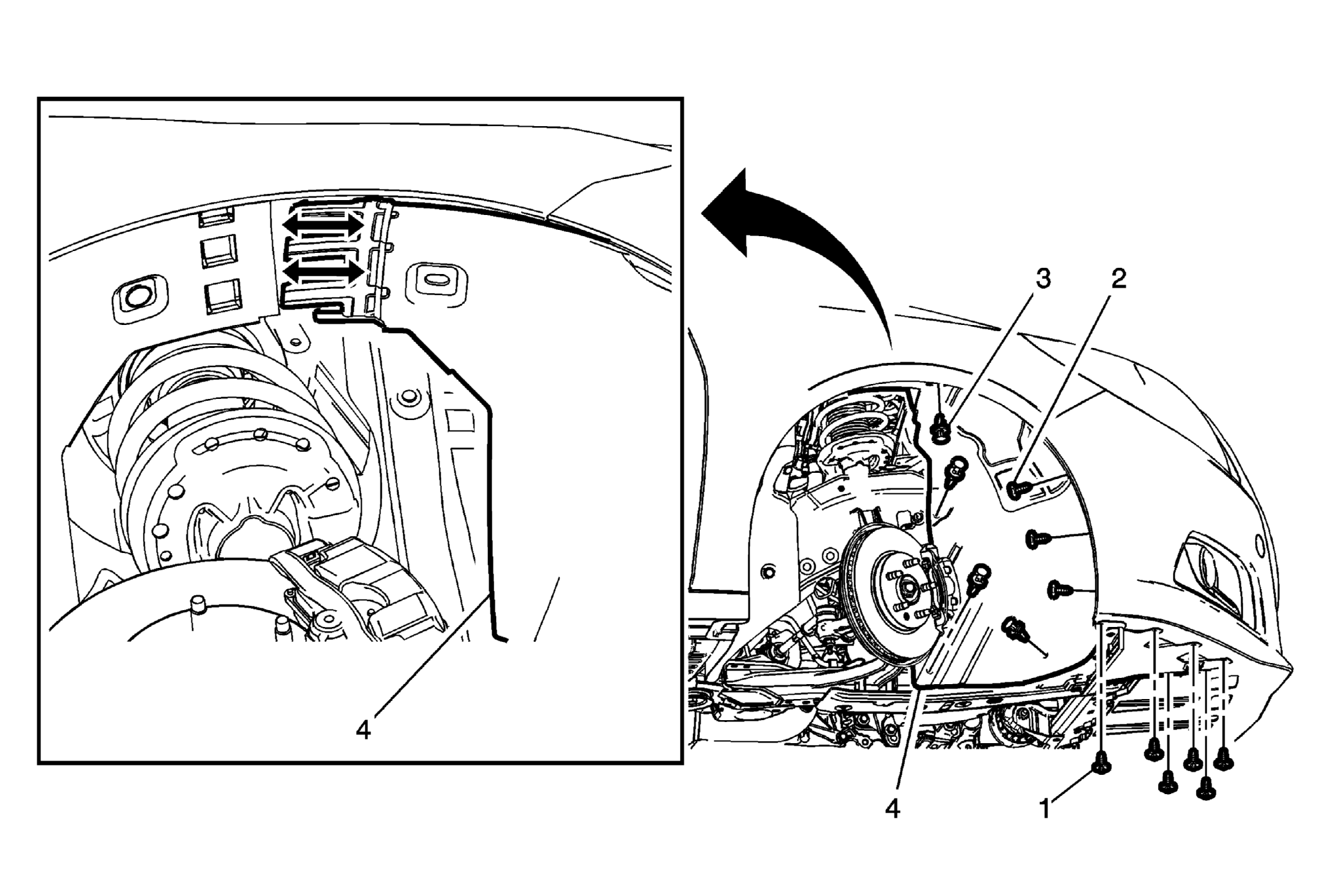

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . |
|
| 1 | Front Wheelhouse Front Liner Screw (Qty: 6)
CAUTION:
Refer to Fastener Caution
. Tighten 2.5 N.m (22 lb in) |
| 2 | Front Wheelhouse Front Liner Screw (Qty: 3) Tighten 2.5 N.m (22 lb in) |
| 3 | Front Wheelhouse Front Liner Push-In Retainer (Qty: 4) |
| 4 | Front Wheelhouse Front Liner Procedure Disengage the upper interlocking retainer. |
