Ignition Lock Cylinder Bezel Replacement (Without BTM)
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the steering column upper trim cover assembly. Refer to Steering Column Upper Trim Cover Replacement . |
|

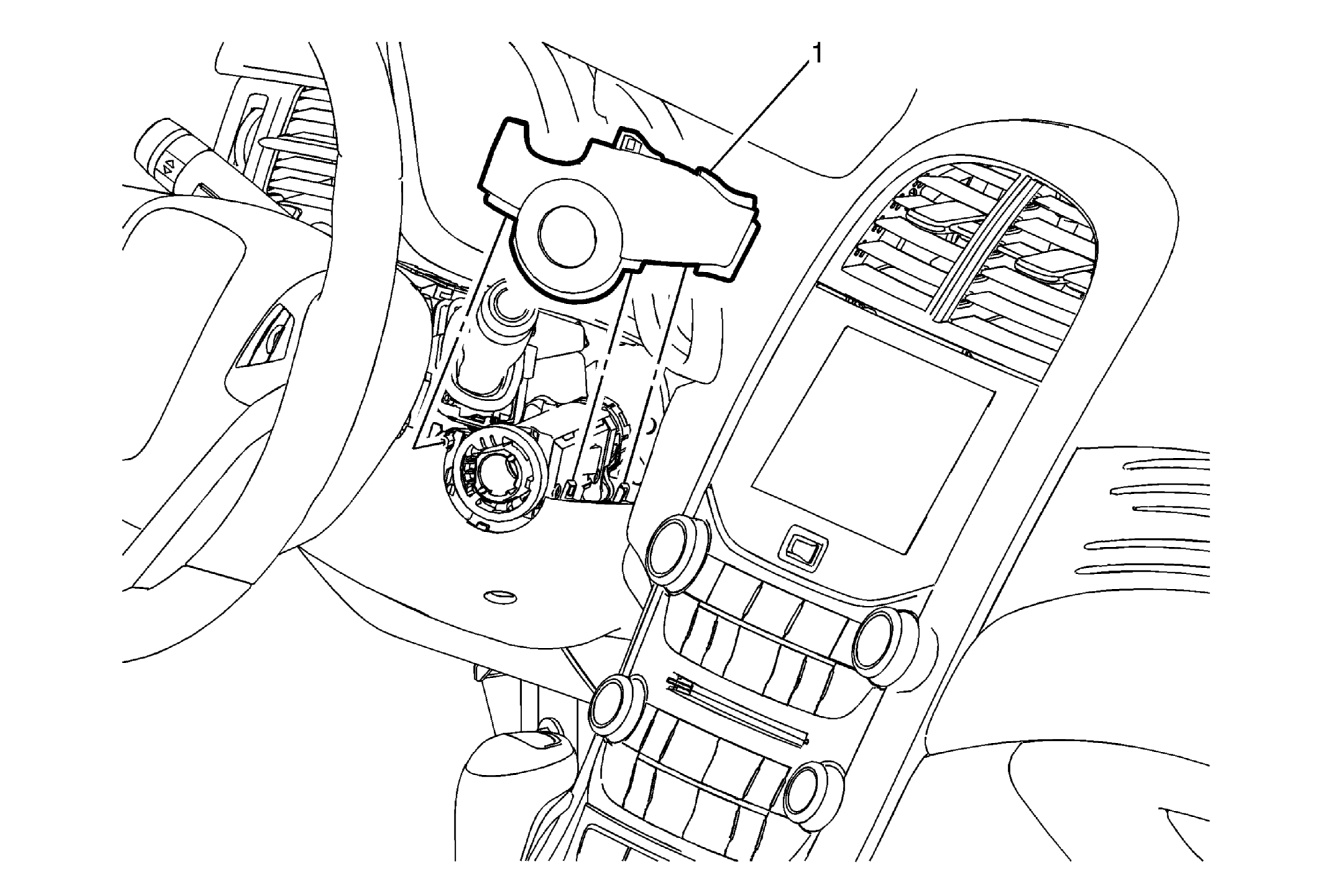

| 1 | Ignition Lock Cylinder Bezel Procedure Use a flat bladed plastic trim tool in order to release the retainer tabs securing the lock bezel to the lower steering column cover. |
