Steering Column Upper Trim Cover Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

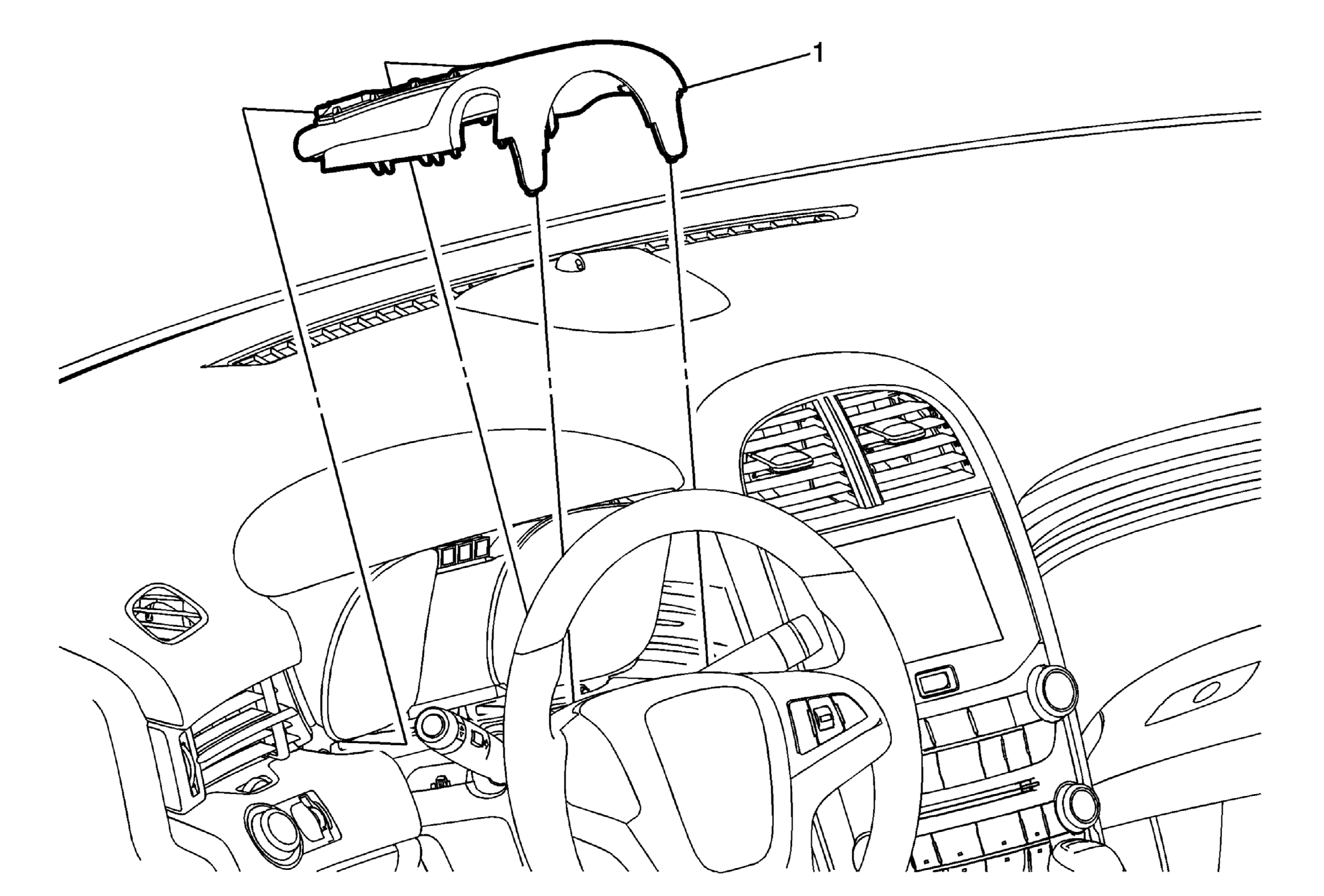

Fig 1: Steering Column Upper Trim Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Steering Column Upper Trim Cover Assembly Procedures Turn the steering wheel to the right in order to release the left tab securing the upper trim cover to the lower trim cover. Release the retainers along the left side of the upper trim cover securing it to the lower trim cover. While holding the left side of the trim cover up, turn the steering wheel enough to release the right retainer tab securing the right side of the upper trim cover to the lower trim cover. Release the retainers along the right side of the upper trim cover securing it to the lower trim cover. Grasp the steering column upper trim cover assembly and pull rearward releasing the clips securing the assembly to the instrument cluster.

Callout

Component Name

Steering Column Upper Trim Cover Assembly

Procedures

Turn the steering wheel to the right in order to release the left tab securing the upper trim cover to the lower trim cover.
Release the retainers along the left side of the upper trim cover securing it to the lower trim cover.
While holding the left side of the trim cover up, turn the steering wheel enough to release the right retainer tab securing the right side of the upper trim cover to the lower trim cover.
Release the retainers along the right side of the upper trim cover securing it to the lower trim cover.
Grasp the steering column upper trim cover assembly and pull rearward releasing the clips securing the assembly to the instrument cluster.
