Radiator Inlet Hose Replacement (LKW)

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

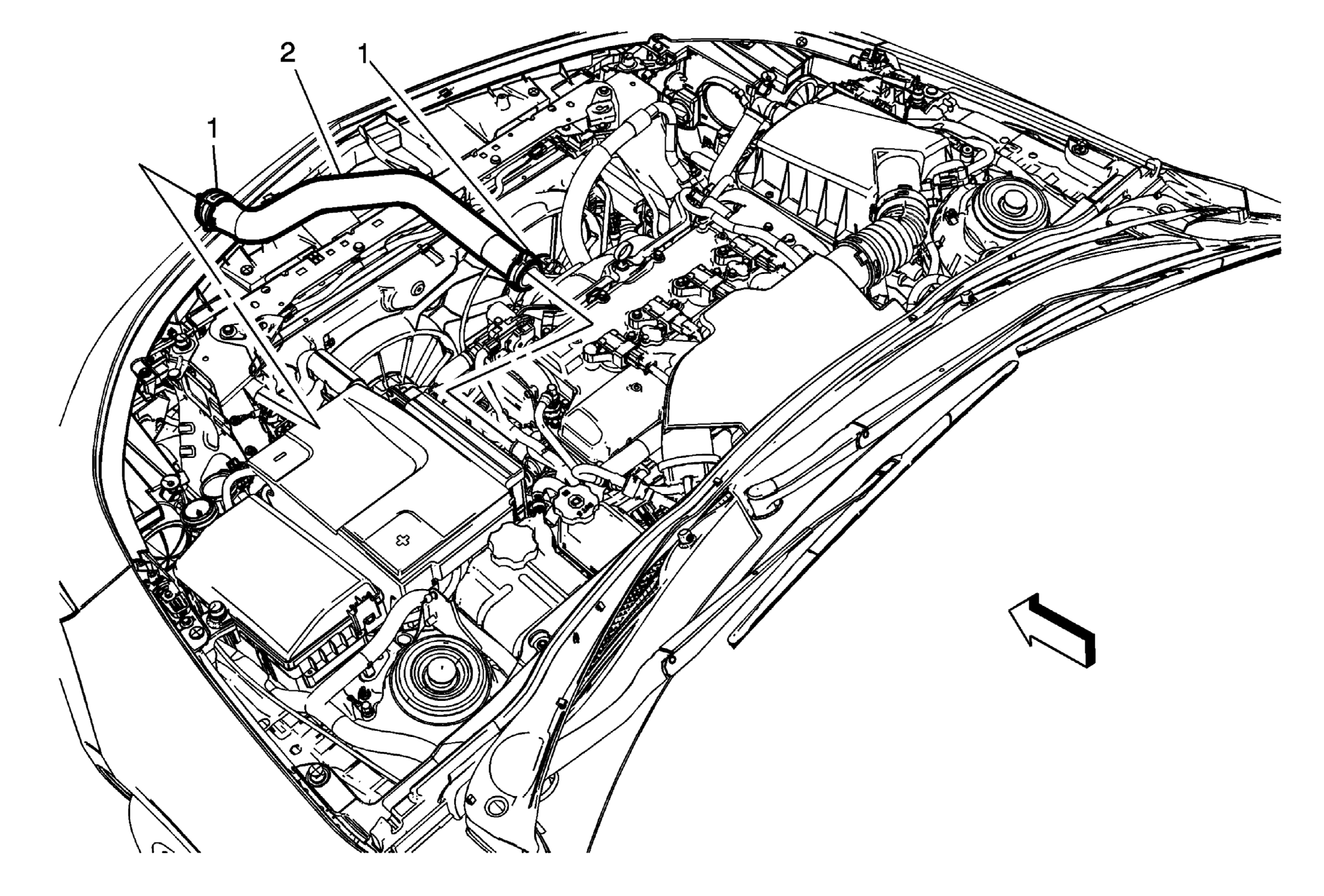

Fig 1: Radiator Inlet Hose & Clamps (LKW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LKW) . Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) and Cooling System Draining and Filling (Static) .
1	Radiator Inlet Hose Clamp (Qty: 2) Procedure Reposition the radiator inlet hose clamps using the BO-38185 hose clamp pliers. Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Radiator Inlet Hose Procedure Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling (GE 47716) and Cooling System Draining and Filling (Static) . Inspect the cooling system for leaks.

Callout

Component Name

Preliminary Procedures

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LKW) .
Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) and Cooling System Draining and Filling (Static) .

Radiator Inlet Hose Clamp (Qty: 2)
Procedure
Reposition the radiator inlet hose clamps using the BO-38185 hose clamp pliers.
Special Tools
BO-38185 Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .

Radiator Inlet Hose

Procedure

Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling (GE 47716) and Cooling System Draining and Filling (Static) .
Inspect the cooling system for leaks.
