Front Floor Console Extension Panel Replacement - Right Side

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

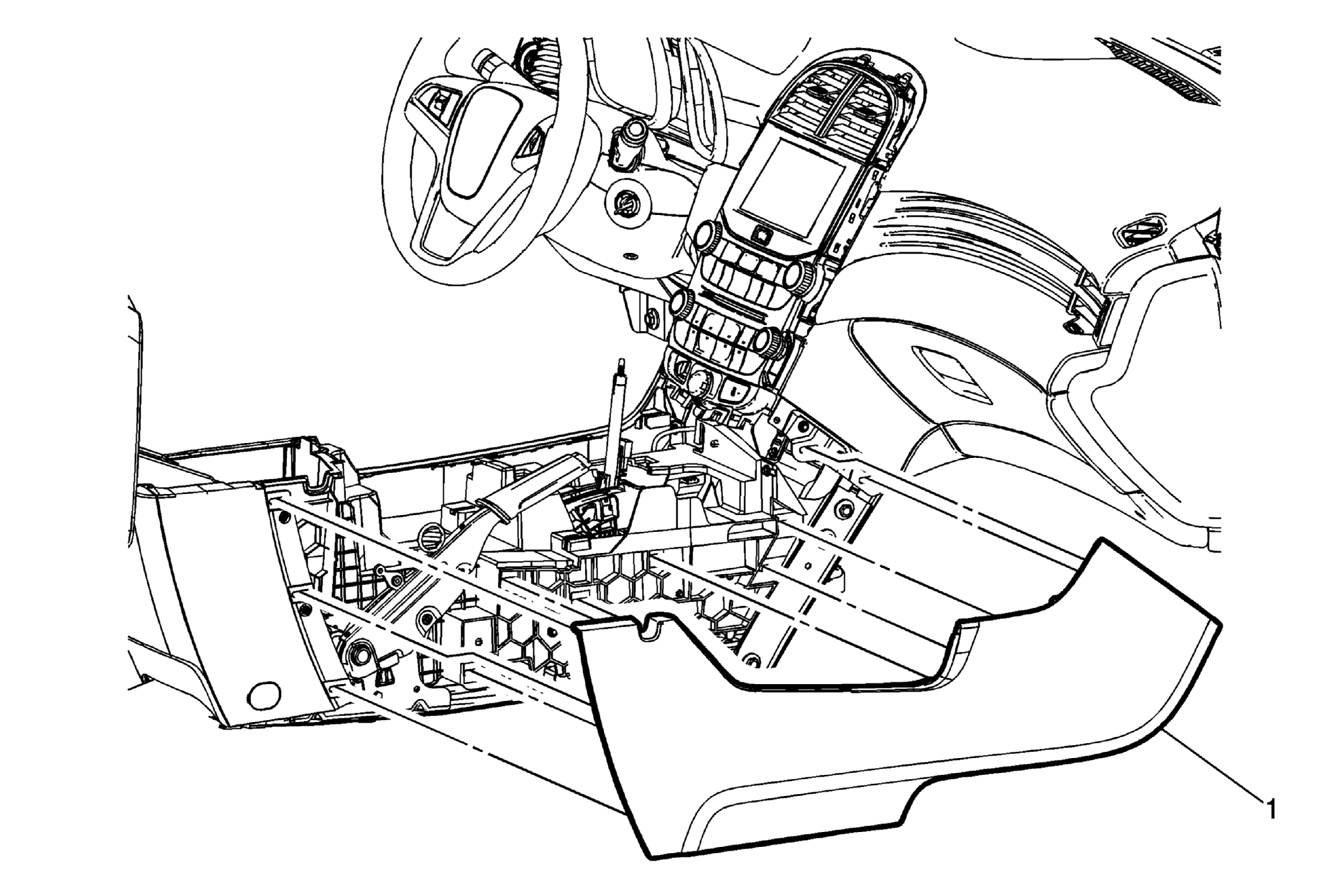

Fig 1: Front Floor Console Extension Panel - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .
1	Front Floor Console Extension Panel Procedure Move the front seat to the full rearward position. Use a flat bladed plastic trim tool in order to release the retainer clips securing the front floor console extension to the console assembly. Disconnect electrical connection, if applicable. When replacing the front floor console extension, transfer all necessary components.

Callout

Component Name

Preliminary Procedure
Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .

Front Floor Console Extension Panel

Procedure

Move the front seat to the full rearward position.
Use a flat bladed plastic trim tool in order to release the retainer clips securing the front floor console extension to the console assembly.
Disconnect electrical connection, if applicable.
When replacing the front floor console extension, transfer all necessary components.
