Front Floor Console Trim Plate Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

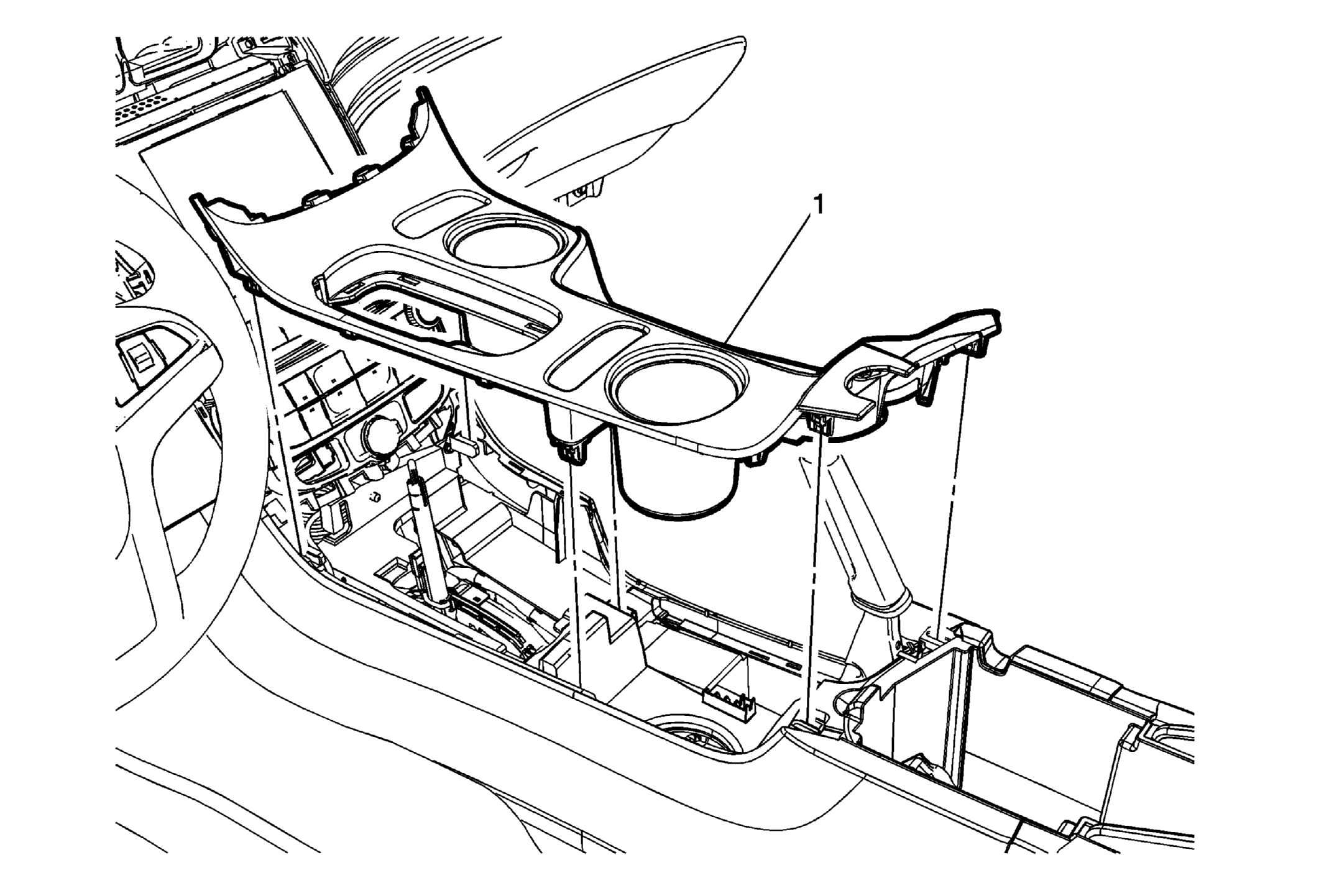

Fig 1: Front Floor Console Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement . Remove the automatic transmission control indicator bezel. Refer to Automatic Transmission Control Indicator Bezel Replacement .
1	Front Floor Console Trim Plate Procedures Use a flat bladed plastic trim tool in order to release the retaining clips securing the front floor console trim plate to the console assembly. When replacing the front floor console trim plate, transfer all necessary components.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement .
Remove the automatic transmission control indicator bezel. Refer to Automatic Transmission Control Indicator Bezel Replacement .

Front Floor Console Trim Plate

Procedures

Use a flat bladed plastic trim tool in order to release the retaining clips securing the front floor console trim plate to the console assembly.
When replacing the front floor console trim plate, transfer all necessary components.
