Automatic Transmission Control Indicator Bezel Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

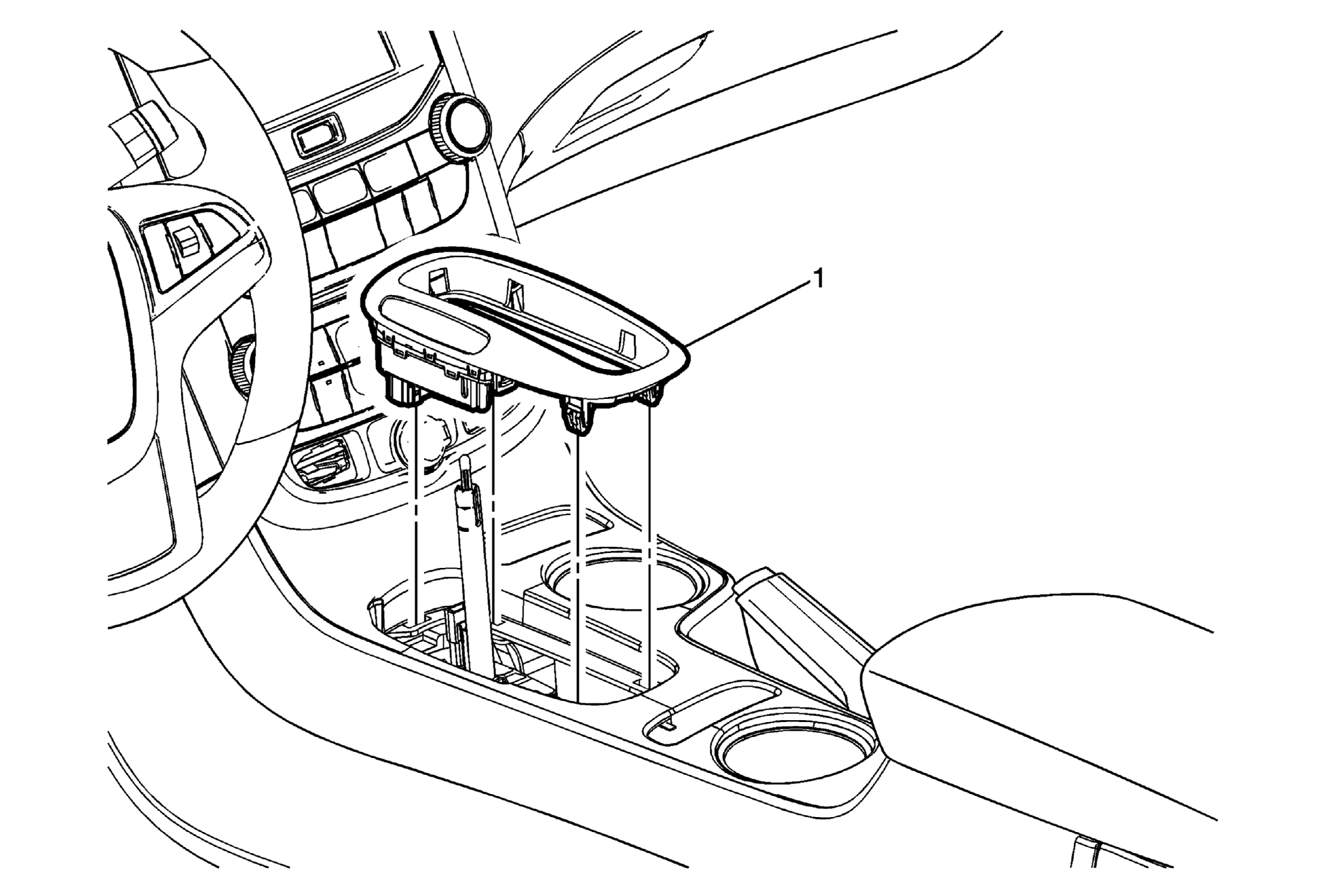

Fig 1: Automatic Transmission Control Indicator Bezel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the transmission control lever boot. Refer to Transmission Control Lever Boot Replacement .
1	Automatic Transmission Control Indicator Bezel Assembly Procedure Use a flat bladed plastic trim tool in order to release the retainer clips securing the automatic transmission control indicator bezel to the console assembly. Disconnect electrical connections. When replacing the automatic transmission control indicator bezel, transfer all necessary components.

Callout

Component Name

Preliminary Procedure
Remove the transmission control lever boot. Refer to Transmission Control Lever Boot Replacement .

Automatic Transmission Control Indicator Bezel Assembly

Procedure

Use a flat bladed plastic trim tool in order to release the retainer clips securing the automatic transmission control indicator bezel to the console assembly.
Disconnect electrical connections.
When replacing the automatic transmission control indicator bezel, transfer all necessary components.
