Instrument Panel Wiring Harness Junction Block Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

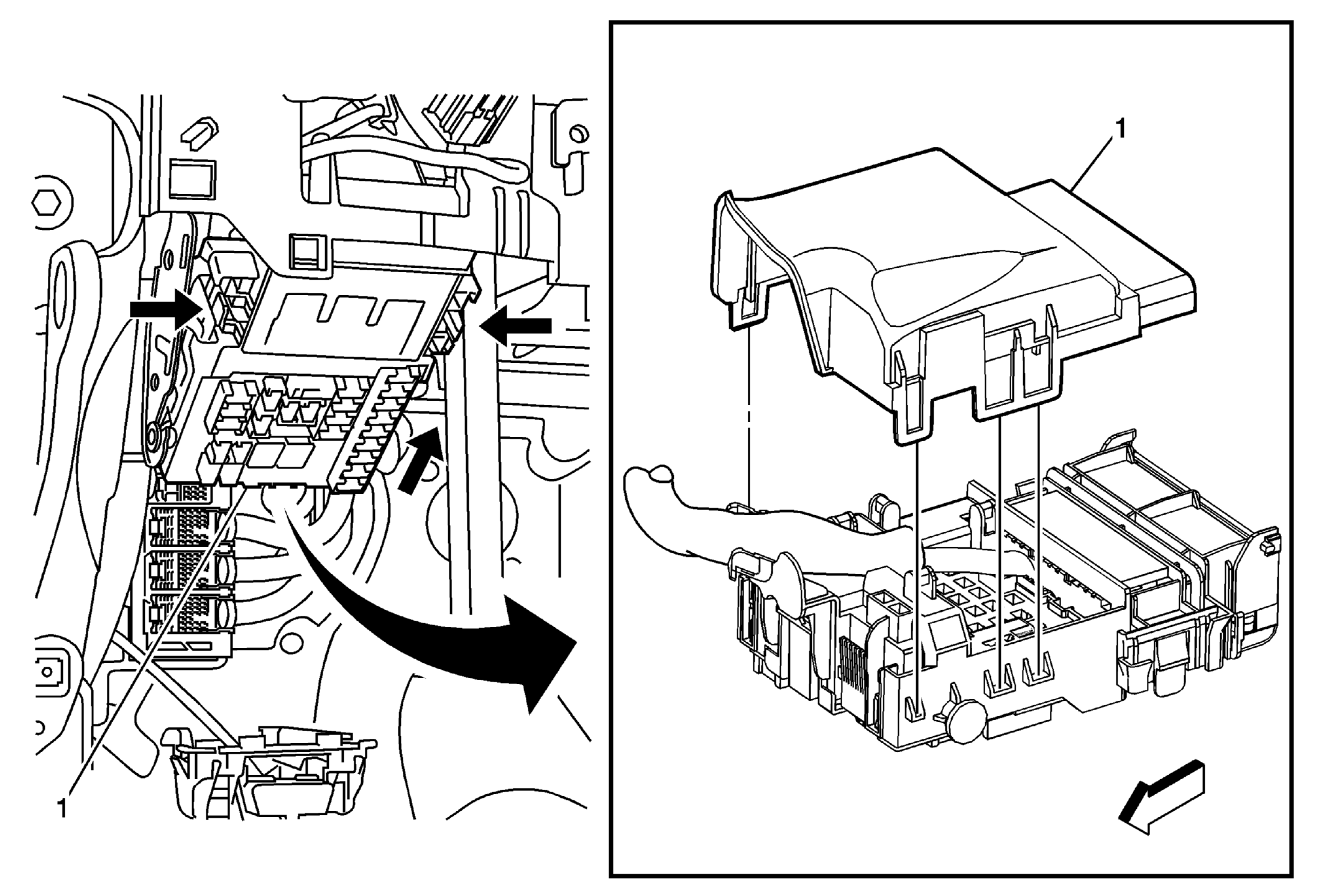

Fig 1: Instrument Panel Wiring Harness Junction Block

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel outer compartment. Refer to Instrument Panel Outer Compartment Replacement . Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) and Battery Negative Cable Disconnection and Connection (With Start/Stop) .
1	Instrument Panel Wiring Harness Junction Block Procedure Extract terminals from block housing. Refer to Instrument Panel Wiring Harness Fuse Block Disassemble .

Callout

Component Name

Preliminary Procedure

Remove the instrument panel outer compartment. Refer to Instrument Panel Outer Compartment Replacement .
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) and Battery Negative Cable Disconnection and Connection (With Start/Stop) .

Instrument Panel Wiring Harness Junction Block
Procedure
Extract terminals from block housing. Refer to Instrument Panel Wiring Harness Fuse Block Disassemble .
