Instrument Panel Outer Compartment Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

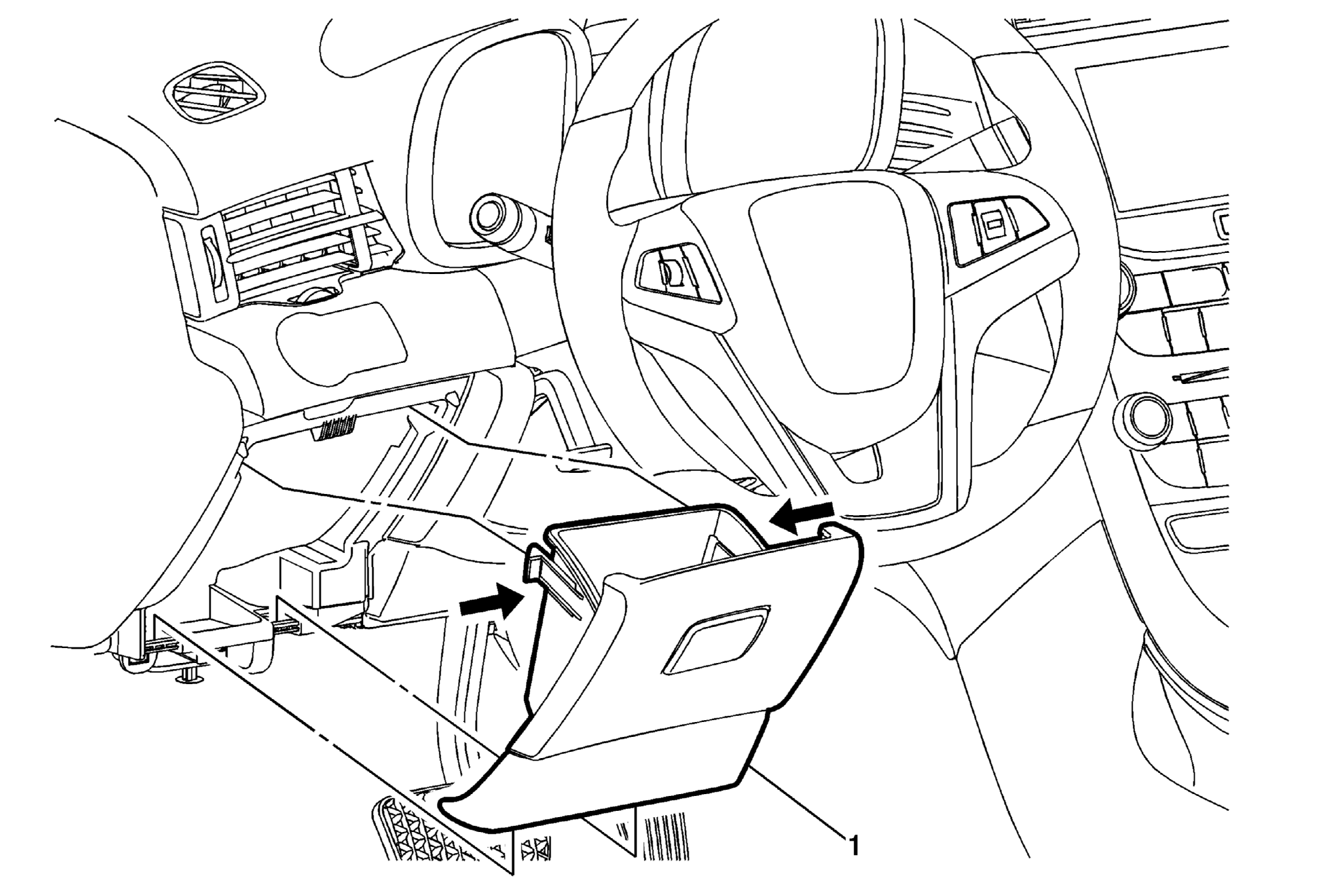

| Callout |
Component Name |
| 1 |
Instrument Panel Outer Compartment Assembly
Procedure
Push in tabs to release the instrument panel outer compartment from the instrument panel assembly. |
