Fuse Block Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

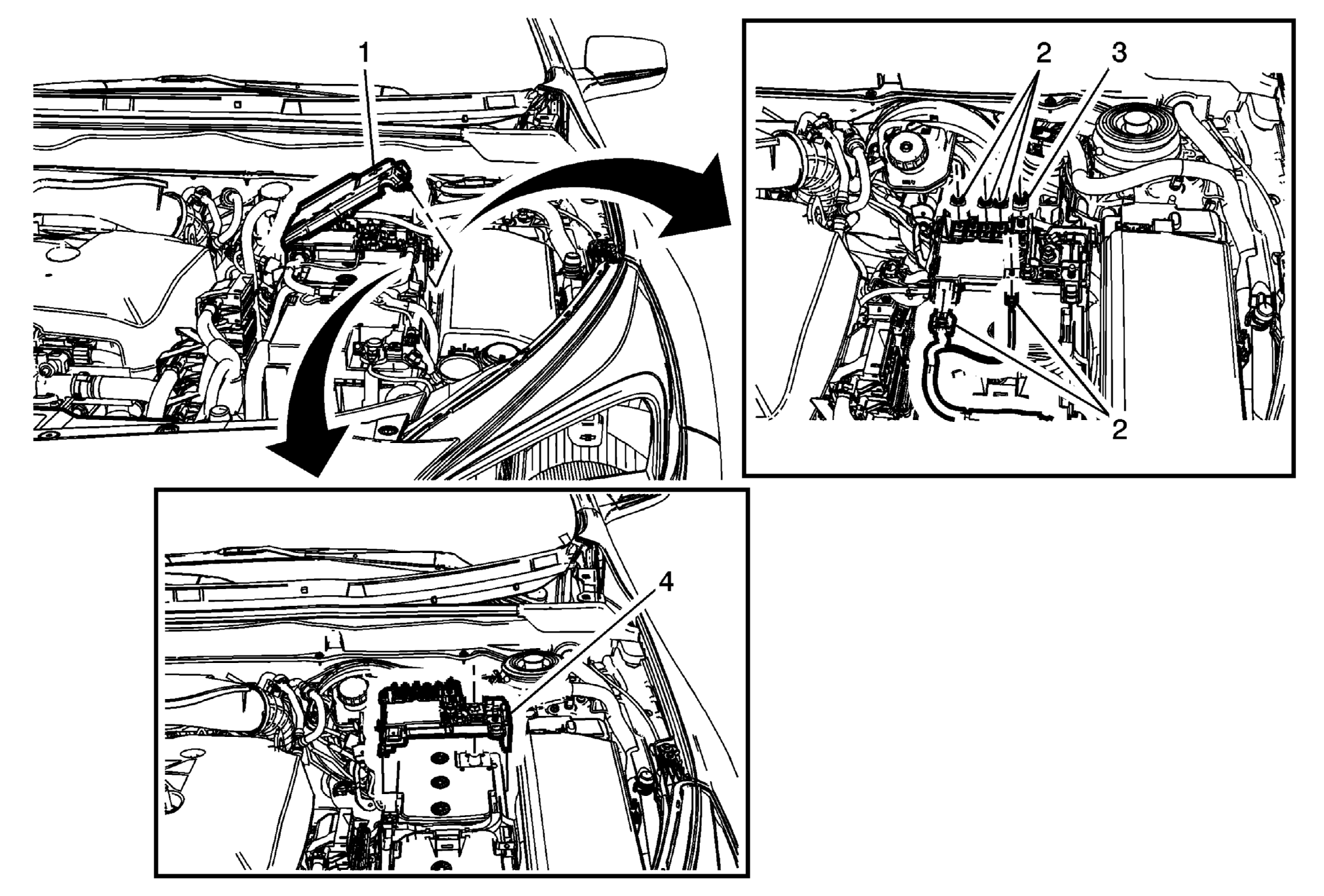

Fig 1: Identifying Fuse Block Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Replacement (without KL9) and Battery Negative Cable Replacement (with KL9) . Disconnect the auxiliary battery negative cable. Refer to Auxiliary Battery Negative Cable Replacement (With Start/Stop)
1	Fuse Block Cover
2	Fuse Block Body Wiring Harness Terminal (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Reposition the fuse block body wiring harness terminal. Disconnect the fuse block body wiring harness connector. Tighten 4.7 N.m (3.5 lb in)
3	Front Compartment Fuse Block Terminal Procedure Reposition the front compartment fuse block terminal. Tighten 4.7 N.m (3.5 lb in)
4	Fuse Block Procedure Loosen the fuse block positive cable terminal nut. Release the locking tabs on the fuse block and remove.
