Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Install the intake manifold gasket (1).

Fig 1: Intake Manifold Gasket
Courtesy of GENERAL MOTORS COMPANY
Install the intake manifold (2).

Fig 2: Intake Bolts
Courtesy of GENERAL MOTORS COMPANY
Hand start the upper intake manifold bolts (1).
Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
Install the lower intake manifold bolt (1).
Tighten the fasteners in sequence.

Fig 3: Intake Manifold Bolt Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
- First Pass: 12 N.m (106 lb in)
- Final Pass: 12 N.m (106 lb in)
Install the fuel pump. Refer to Fuel Pump Replacement .
Install the throttle body. Refer to Throttle Body Assembly Replacement (LKW) .
Evaporative Emission Canister Purge Solenoid Valve Replacement (LKW) »Install (1)

Fig 4: EVAP Canister Valve
Courtesy of GENERAL MOTORS COMPANY
Install the rear brake vacuum pipe (1). Refer to Power Brake Booster Vacuum Rear Pipe Replacement (LKW) .

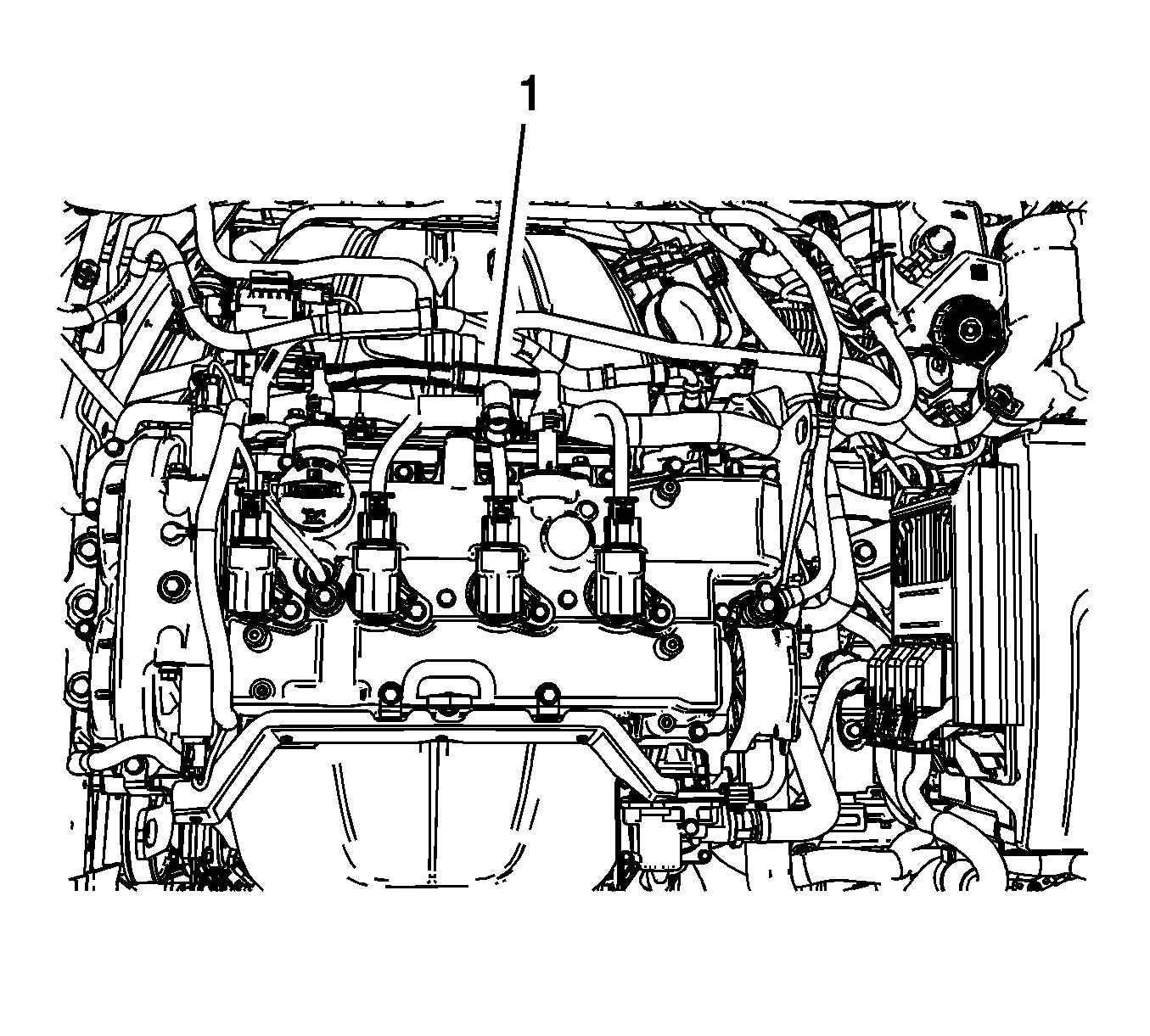

Fig 5: Brake Vacuum Pipe
Courtesy of GENERAL MOTORS COMPANY
Connect electrical connectors as necessary.
Clip the retainers attaching the fuel injector harness to the intake manifold and reposition the harness.
Install the PCV pipe (1). Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LKW) .

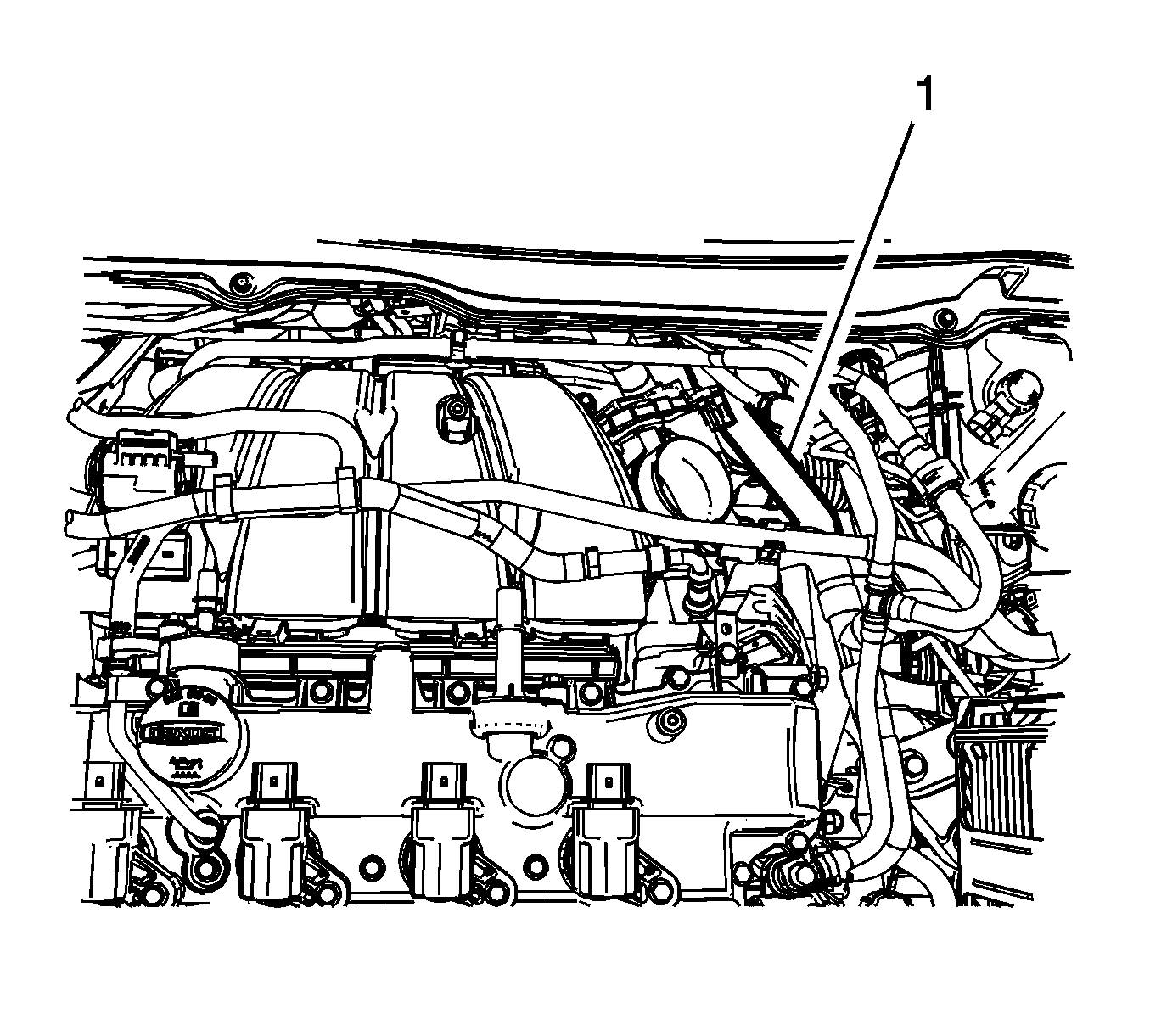

Fig 6: PCV Pipe
Courtesy of GENERAL MOTORS COMPANY
Install the intake manifold cover. Refer to Intake Manifold Cover Replacement (LKW) .
