Sunroof Window Replacement

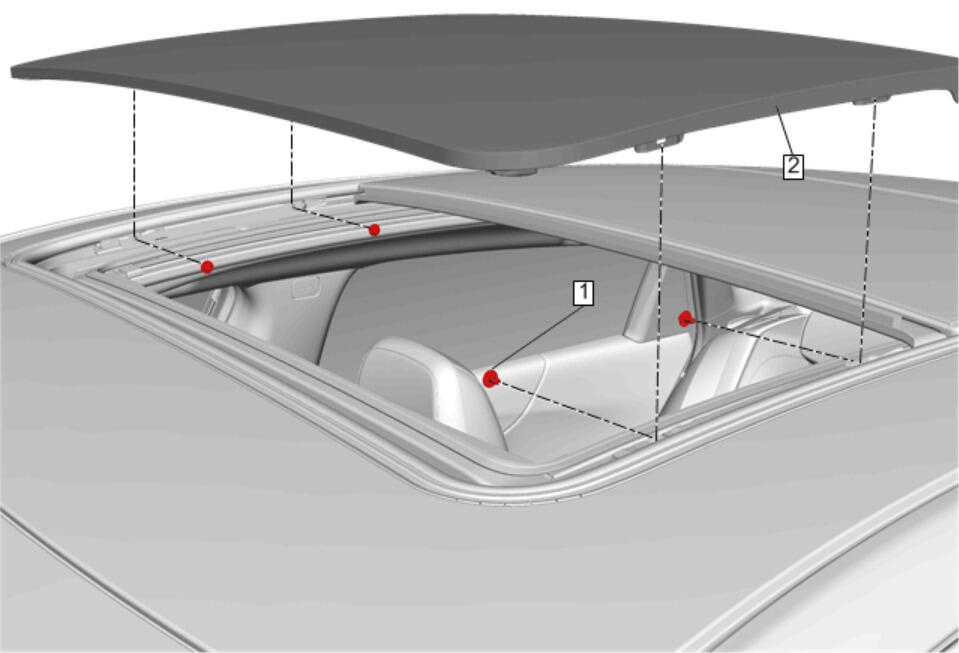

Fig 1: Sunroof Window

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Sunroof Window Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Pull down on the inner sunroof window seal to gain access to the screws. Tighten 1.5 N.m (13 lb in)
2	Sunroof Window - Front Procedure Lift the sunroof window out of the frame. Sunroof Window Height and Opening Fit Adjustment Water test and inspect sunroof for proper operation.

Callout

Component Name

Sunroof Window Screw (Qty: 4)

CAUTION:

Procedure
Pull down on the inner sunroof window seal to gain access to the screws.
Tighten
1.5 N.m (13 lb in)

Sunroof Window - Front

Procedure
