Sunroof Window Height and Opening Fit Adjustment

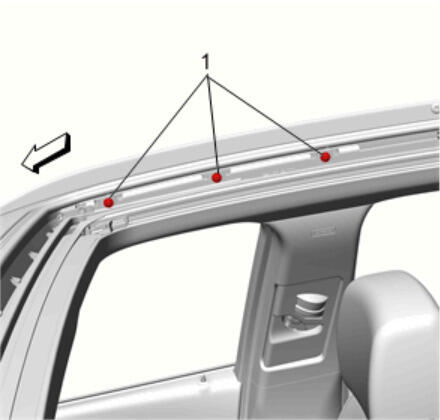

    Fig 1: Front Sunroof Window Rear Screws
    GM3931525Courtesy of GENERAL MOTORS COMPANY
  1. Open the front sunroof window to the vent position.
  2. Loosen the front sunroof window rear screws (1), left and right side.
  3. Open the front sunroof to the half open position.
  4. Loosen the front and middle sunroof window screws (1), left and right side.
  5. Close the front sunroof.
    6. Fig 2: Adjust Sunroof Window
    GM3931527Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Tighten the sunroof window in the upper position.

  6. Adjust the window to the following specs, gap 11.0 + or -0.3 mm (0.43 in) between the front rear and rear front edges.
    7. CAUTION:

    Refer to Fastener Caution .

  7. Tighten the front sunroof window rear screws (1) to 1.5 N.m (13 lb in).
  8. Open the front sunroof window until the rear part is in the vent position.
  9. Tighten the front and middle sunroof window screws (1) to 1.5 N.m (13 lb in).
  10. Close the front sunroof.
