Roof Stationary Window Replacement

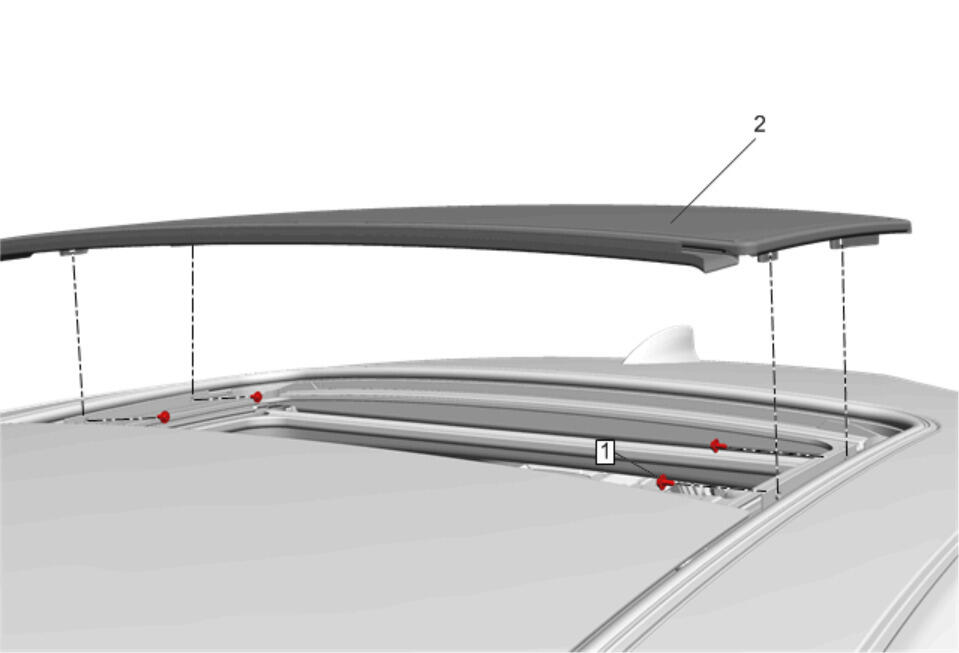

Fig 1: Roof Stationary Window

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Place the sunroof front window in the vent position.
1	Sunroof Window Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Pull down on the inner sunroof window seal to gain access to the stationary window screws. Tighten 1.5 N.m (13 lb in)
2	Roof Stationary Window Frame Procedure Lift the sunroof window out of the frame. Sunroof Window Height and Opening Fit Adjustment Water test and inspect sunroof for proper operation.

Callout

Component Name

Preliminary Procedure
Place the sunroof front window in the vent position.

Sunroof Window Screw (Qty: 4)

CAUTION:

Procedure
Pull down on the inner sunroof window seal to gain access to the stationary window screws.
Tighten
1.5 N.m (13 lb in)

Roof Stationary Window Frame

Procedure
