Rear Window Panel Trim Replacement

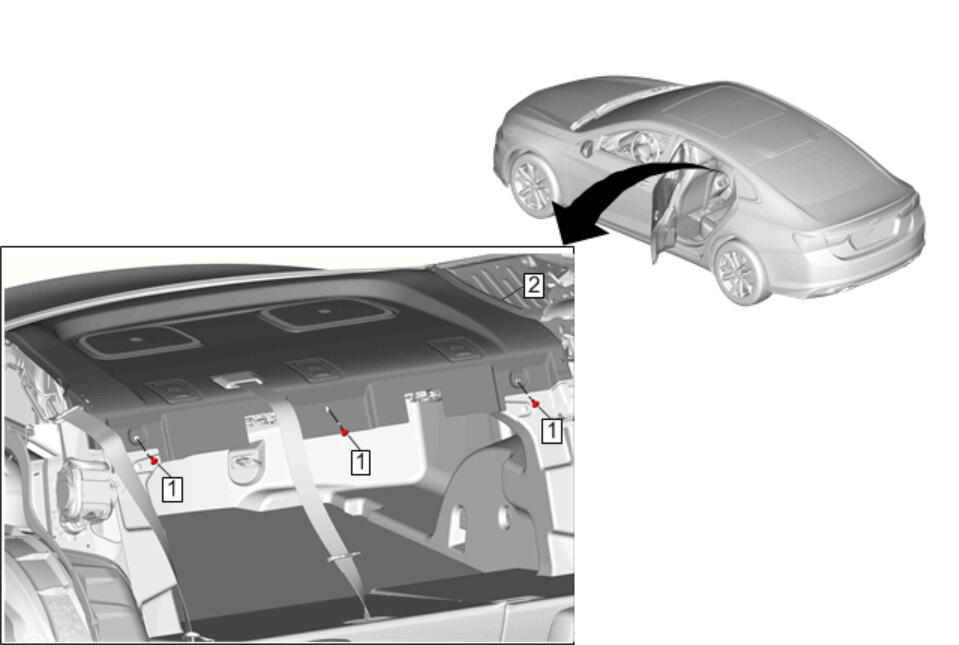

Fig 1: Rear Window Panel Trim
GM4215788Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Quarter Window Lower Trim Finish Panel Replacement
  2. Body Side Rear Window Garnish Molding Replacement
  3. Fold down rear seat to access retainers.
1 Rear Window Panel Trim Retainer
Procedure
Use a flat bladed plastic trim tool.
2 Rear Window Panel Trim

Procedure

  1. Lift up on the rear window panel to release the retainers under the forward portion of the panel.
  2. With the aid of an assistant, guide the rear window panel forward in the vehicle and upwards to clear the speaker system.
  3. When replacing the rear window panel trim assembly, transfer all necessary components.
  4. Ensure the rear window trim panel feet are seated into the rear window sheet metal drain shoe.
