Body Side Rear Window Garnish Molding Replacement

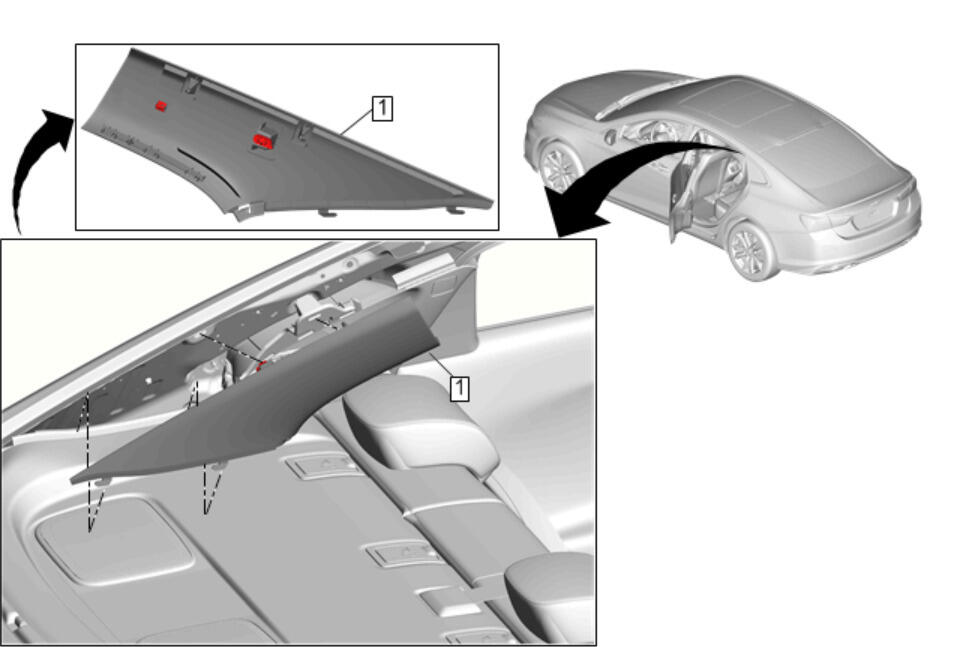

Fig 1: Body Side Rear Window Garnish Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure SIR Disabling and Enabling
1	Body Side Rear Window Garnish Molding Procedure Use a flat bladed plastic trim tool. Pull outward from the top front to release the upper portion of the molding, then move forward and upward to release the tabs which hook into rear window panel trim.

Callout

Component Name

Body Side Rear Window Garnish Molding

Procedure

Use a flat bladed plastic trim tool.
Pull outward from the top front to release the upper portion of the molding, then move forward and upward to release the tabs which hook into rear window panel trim.
