Rear Seat Latch Replacement

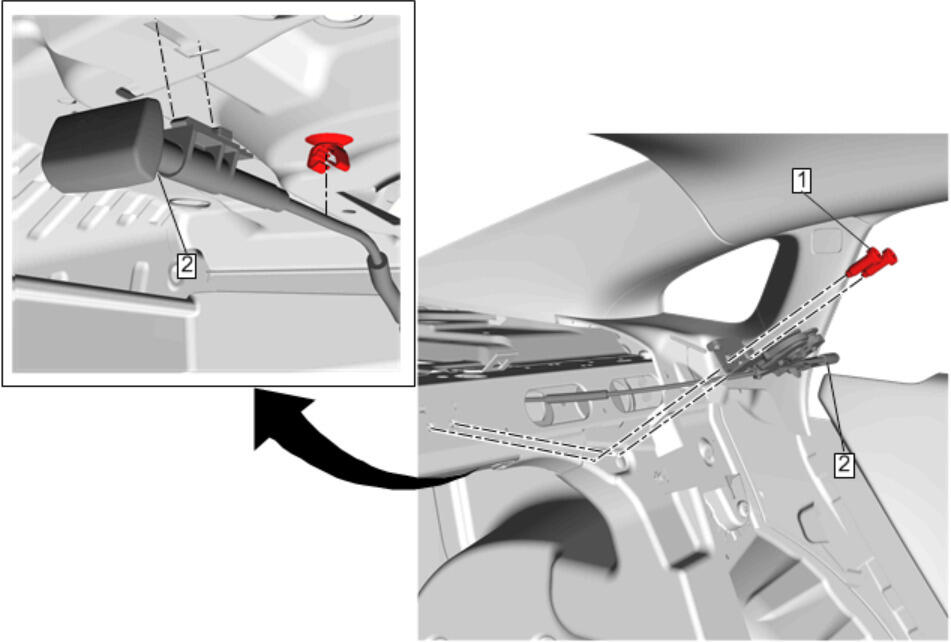

Fig 1: Rear Seat Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Window Panel Trim Replacement
1	Rear Seat Back Latch Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Latch
