Rear Seat Head Restraint Guide Replacement

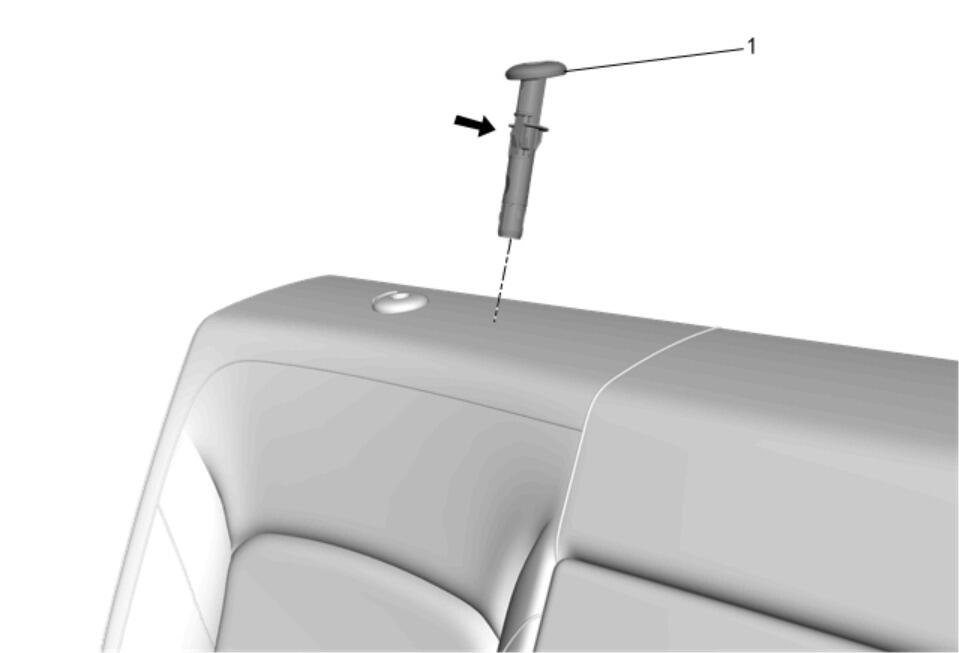

Fig 1: Rear Seat Head Restraint Guide

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Rear Seat Head Restraint Replacement .
1	Rear Seat Head Restraint Guide Procedure  Using a suitable flat-bladed tool, slide the tool on the outside of the guide until it finds the slot. Then push the plastic slot inward and pull upward to remove the guide from the seat back frame.
