Rear Seat Head Restraint Replacement

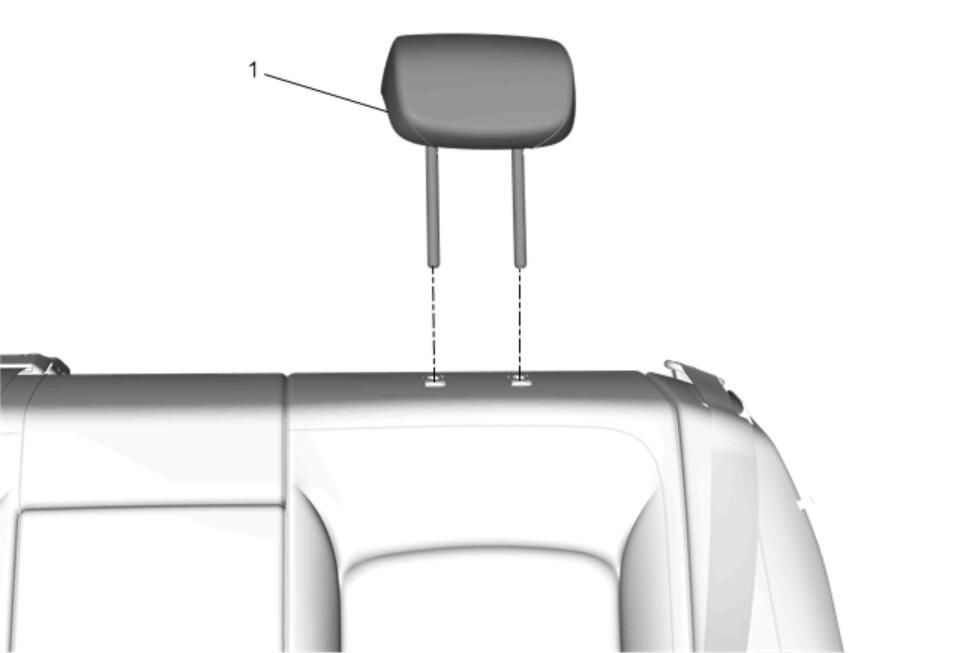

Fig 1: Rear Seat Head Restraint
GM4214848Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Head Restraint

Procedure

  1. Lower the rear seat back forward to gain space between the head restraint and the roof.
  2. Depress the large button on the head restraint guide and raise the head restraint to the full up position.
  3. Depress the smaller button on the opposite head restraint guide and pull upward to remove from the seat.
