Dash Panel Upper Extension Panel Extension Replacement

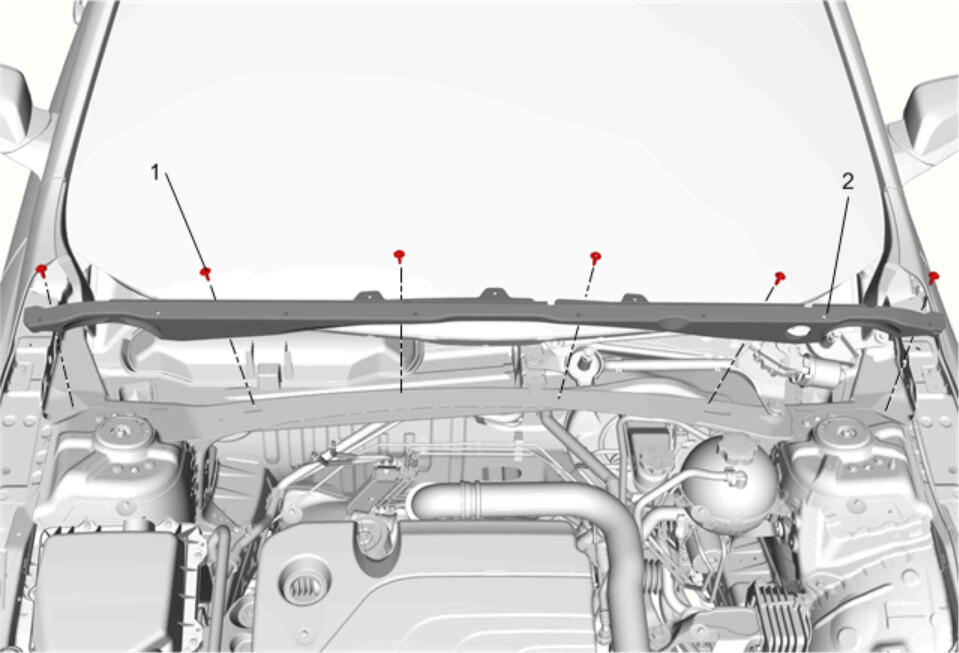

| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Inlet Grille Panel Replacement |
|
| 1 | Dash Panel Upper Extension Panel Extension Bolt (Qty: 6)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Dash Panel Upper Extension Panel Extension |
