Air Inlet Grille Panel Replacement

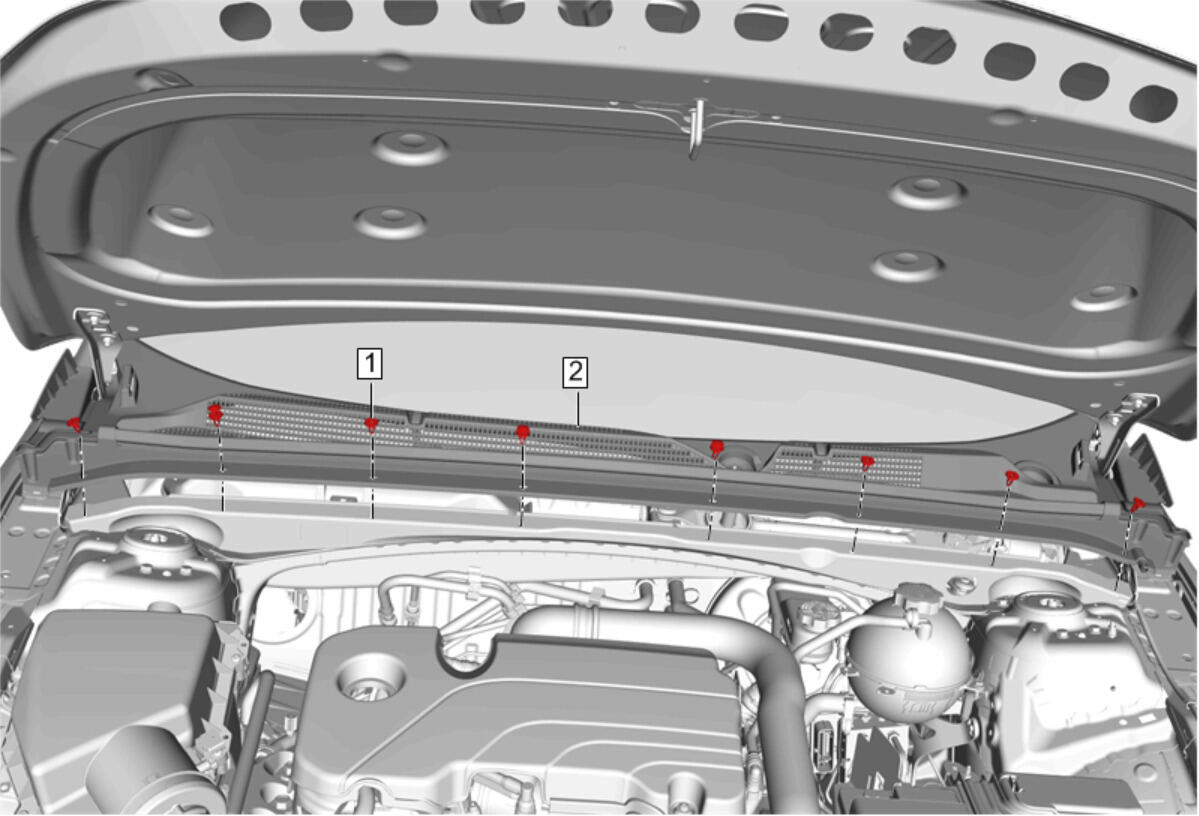

Fig 1: Air Inlet Grille Panel
GM4211050Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Windshield Wiper Arm Replacement
  2. Air Inlet Grille Panel Extension Replacement
1 Air Inlet Grille Panel Retainer (Qty: 8)

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Release the plastic retaining tabs.
2 Air Inlet Grille Panel

Procedure

  1. Lift up the front edge of the air inlet grille panel, slide the grille panel forward from both hood hinges.
  2. Disconnect the windshield washer nozzle hose from the windshield washer nozzle hose connector hose.
  3. Transfer components as necessary.
