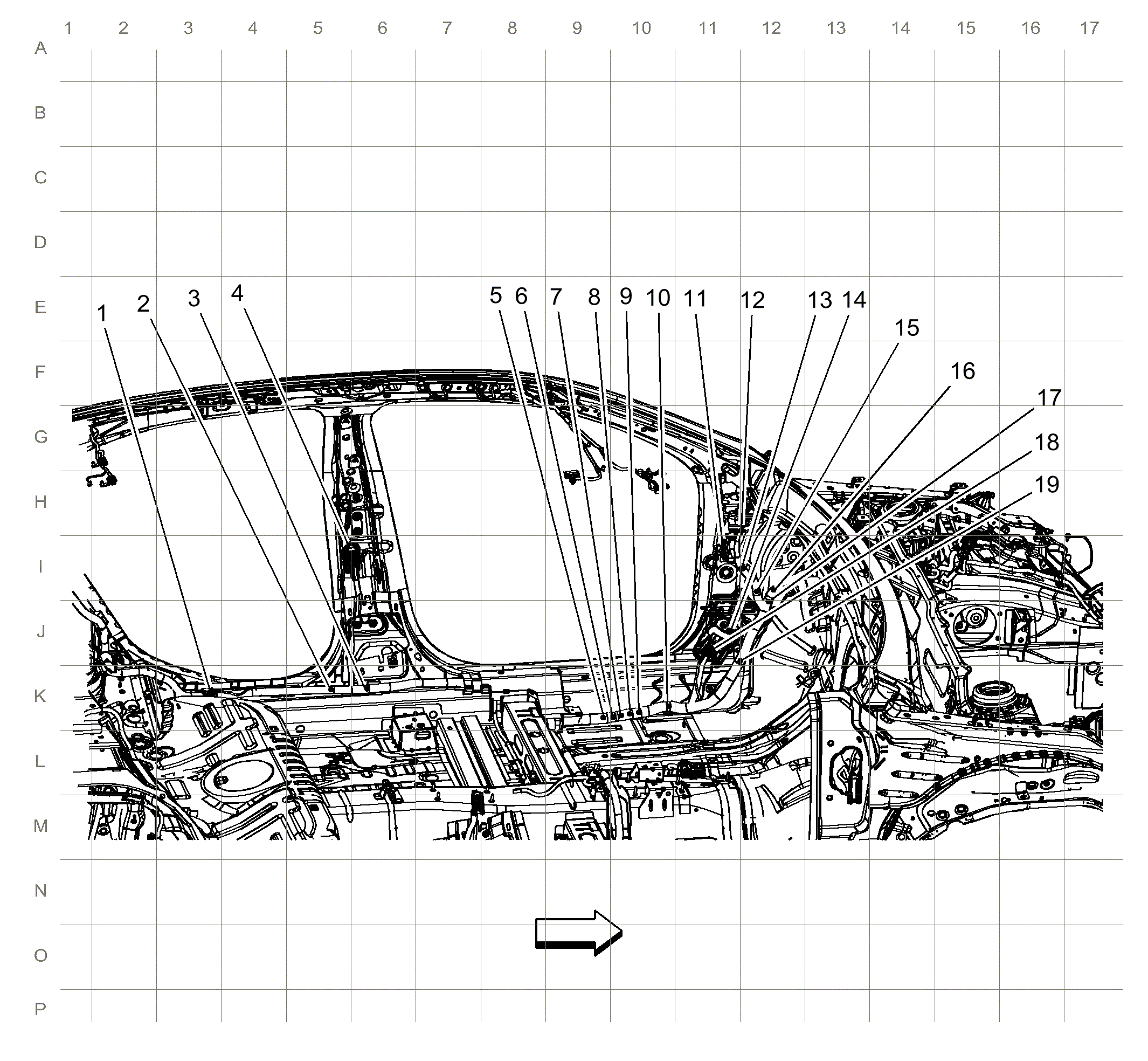

Left Front of Passenger Compartment Harness Routing 2 of 2
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| JX300 (ATS, UD7 or UFL) JX300 Splice Pack |
| J333 (TSQ with 1LT, 2LT or 1LZ) |
| J339 (TSQ with 1LT, 2LT or 1LZ) |
| X700 X700 Left Rear Door Harness to Body Harness |
| J321 |
| J319 |
| J304 |
| J223 (UQA) |
| J305 |
| J233 |
| X500 X500 Driver Door Harness to Body Harness |
| J218 |
| J219 |
| X210 X210 Instrument Panel Harness to Body Harness |
| J136 |
| J322 |
| J221 |
| X222 (U2K) X222 Body Harness COAX to Instrument Panel COAX (U2K with UHQ)X222 Body Harness COAX to Instrument Panel COAX (U2K without UHQ) |
| J232 |
