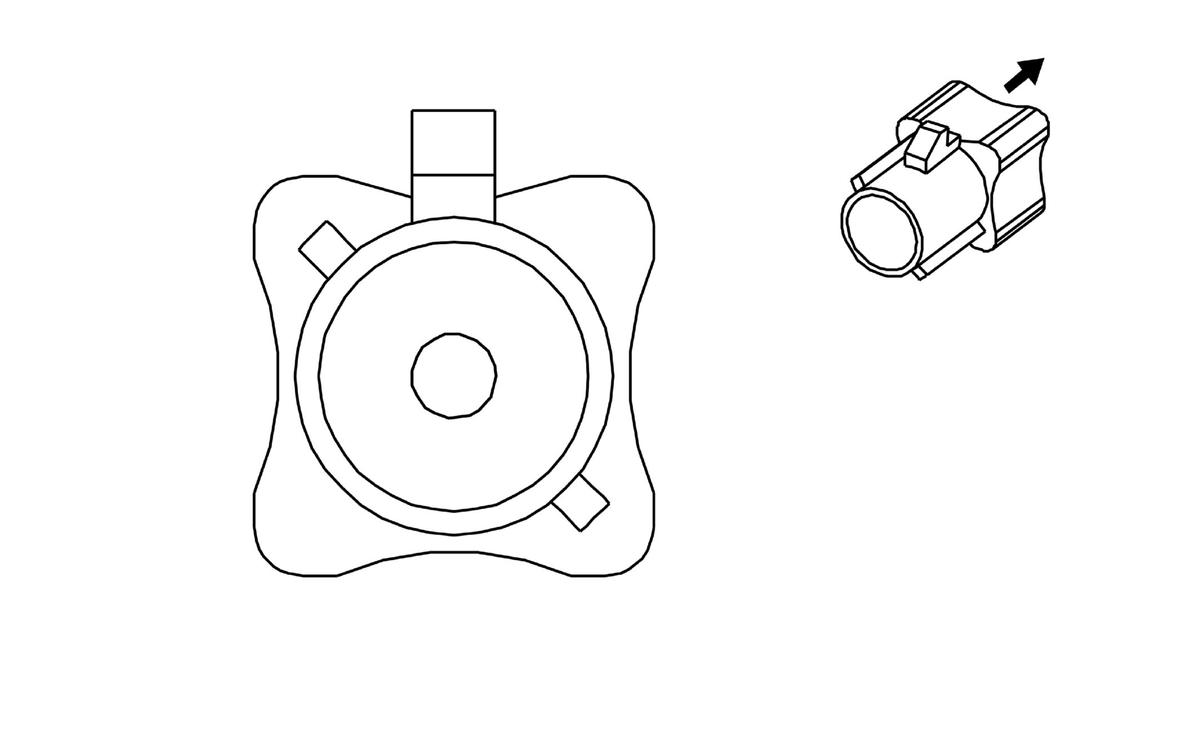

X222 Body Harness COAX to Instrument Panel COAX (U2K without UHQ)
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|
Connector Part Information
- Harness Type: Body COAX
- OEM Connector: 13917784
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way F COAX (YE)
|
Connector Part Information
- Harness Type: Instrument Panel COAX
- OEM Connector: 13817980
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way M COAX (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
COAX |
- |
I |
- |
Coaxial Antenna XM Signal |
- |
- |
COAX |
- |
I |
- |
