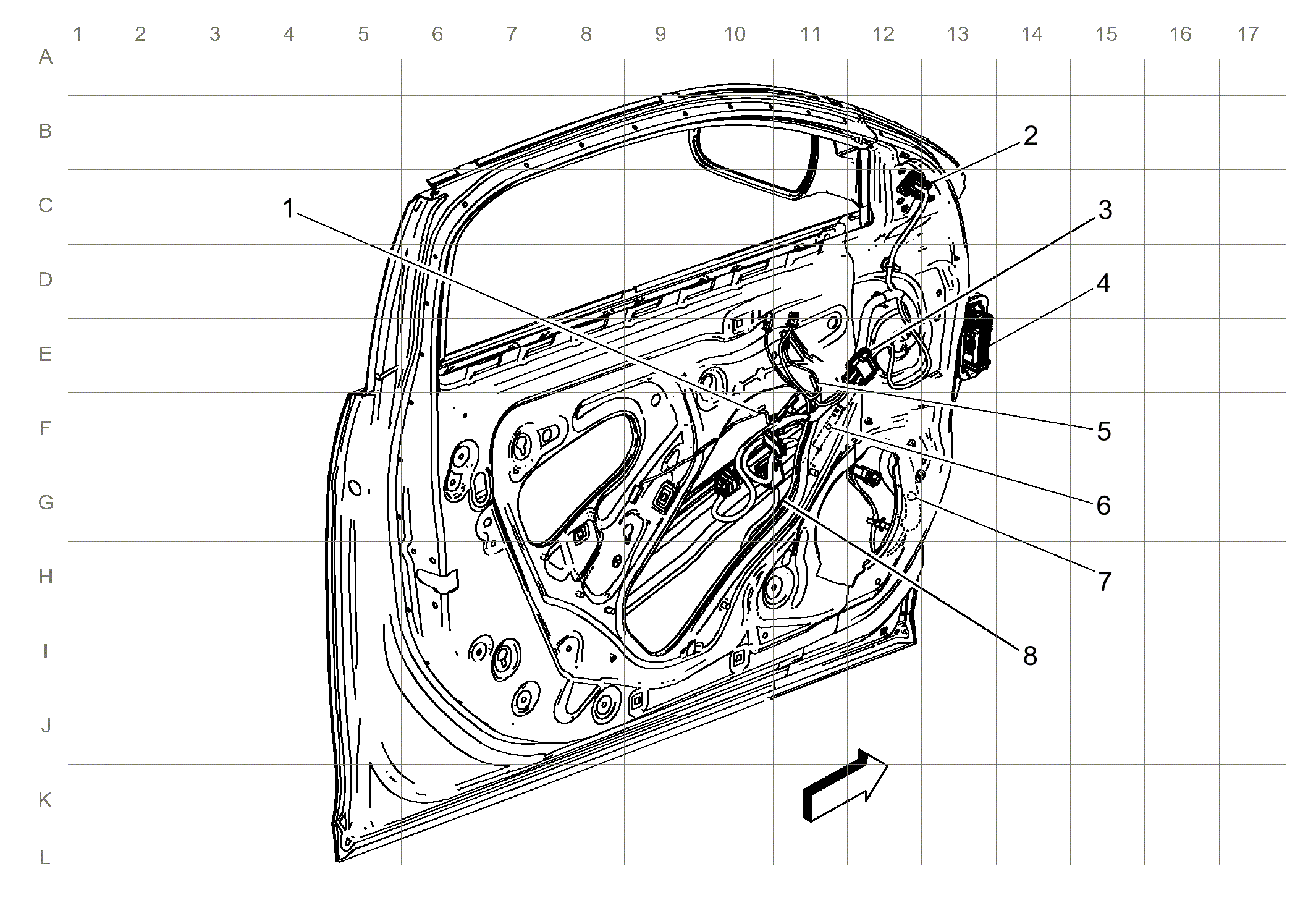

Driver Door Harness Routing
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| J505 |
| X510 X510 Driver Door Harness to Driver Outside Rearview Mirror Harness |
| X505 X505 Driver Door Harness to Driver Door Trim Harness |
| X500 X500 Driver Door Harness to Body Harness |
| J503 (AXG) |
| J502 (DWS) |
| J506 |
| J504 |
