X510 Driver Door Harness to Driver Outside Rearview Mirror Harness
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

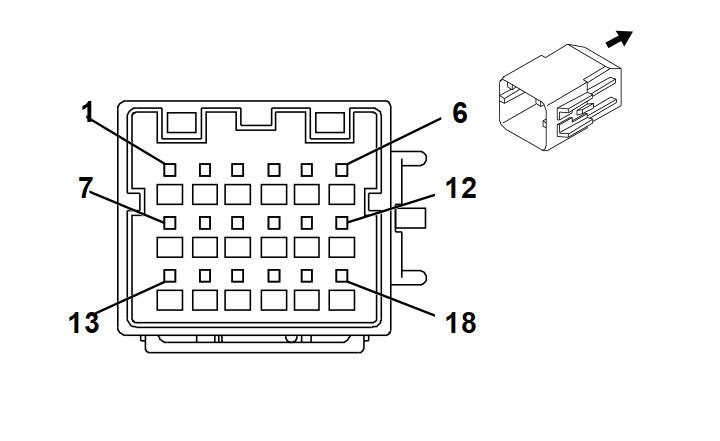

Connector Part Information
- Harness Type: Driver Door
- OEM Connector: 13829997
- Service Connector: Service by Harness - See Part Catalog
- Description: 18-Way F 0.64 Series (BK)
|

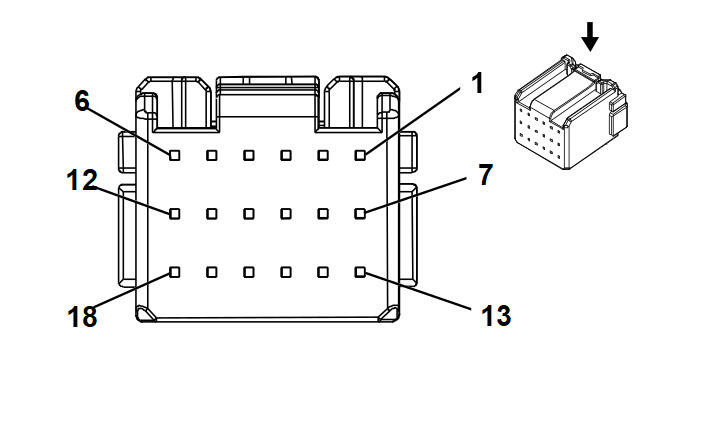

Connector Part Information
- Harness Type: Driver Outside Rearview Mirror
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 18-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY/VT |
329 |
I |
-A45 |
Left Mirror Motor Control |
1 |
0.5 |
GY/VT |
329 |
II |
-A45 |
| 2 |
0.5 |
YE/L-GN |
88 |
I |
-A45 |
Left Mirror Motor Up Control |
2 |
0.5 |
YE/L-GN |
88 |
II |
-A45 |
| 3 |
0.5 |
L-GN |
81 |
I |
-A45 |
Left Mirror Motor Right Control |
3 |
0.5 |
L-GN |
81 |
II |
-A45 |
| 4 |
0.35 |
BN/YE |
2267 |
I |
- |
Mirror Heating Element Control |
4 |
0.35 |
BN/YE |
2267 |
II |
- |
| 5 |
0.35 |
BK |
850 |
I |
- |
Ground |
5 |
0.35 |
BK |
850 |
II |
- |
| 6 |
- |
- |
- |
- |
- |
Not Occupied |
6 |
- |
- |
- |
- |
- |
| 7 |
0.35 |
D-BU/WH |
1314 |
I |
- |
Left Front Turn Signal Lamp Control |
7 |
0.35 |
D-BU/WH |
1314 |
II |
- |
| 8 |
0.35 |
BK |
850 |
I |
- |
Ground |
8 |
0.35 |
BK |
850 |
II |
- |
| 9 - 10 |
- |
- |
- |
- |
- |
Not Occupied |
9 - 10 |
- |
- |
- |
- |
- |
| 11 |
0.35 |
L-GN/D-BU |
784 |
I |
- |
Left Mirror Vertical Position Sensor Signal |
11 |
0.35 |
L-GN/D-BU |
784 |
II |
- |
| 12 |
0.35 |
D-BU/RD |
672 |
I |
- |
Left Outside Rear View Mirror Position Sensor 5V Reference |
12 |
0.35 |
D-BU/RD |
672 |
II |
- |
| 13 |
0.35 |
VT/GY |
786 |
I |
- |
Left Mirror Horizontal Position Sensor Signal |
13 |
0.35 |
VT/GY |
786 |
II |
- |
| 14 |
0.35 |
BK/BN |
673 |
I |
- |
Left Outside Rear View Mirror Position Sensor Low Reference |
14 |
0.35 |
BK/BN |
673 |
II |
- |
| 15 |
0.35 |
GY/YE |
5853 |
I |
- |
Driver Side Object Detection LED Signal 1 |
15 |
0.35 |
GY/YE |
5853 |
II |
- |
| 16 - 18 |
- |
- |
- |
- |
- |
Not Occupied |
16 - 18 |
- |
- |
- |
- |
- |
