Front Wheelhouse Liner Replacement

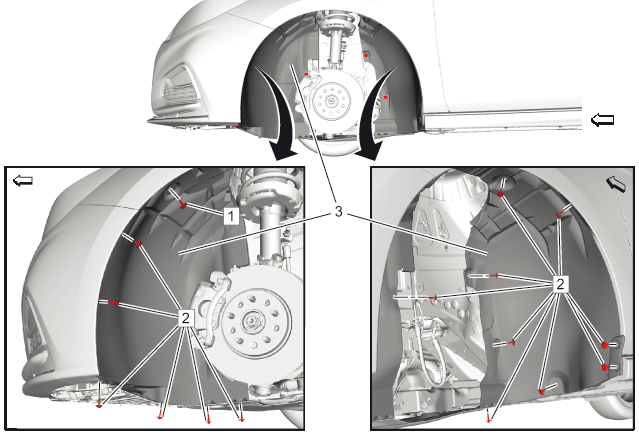

Fig 1: Front Wheelhouse Liner
GM4290336Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Tire and Wheel Removal and Installation
  2. Front Tire Front Air Deflector Replacement
1 Front Wheelhouse Liner Retainer
2 Front Wheelhouse Liner Bolt [15x]
CAUTION: Fastener Caution

Tighten
2.5 N.m (22 lb in)
3 Front Wheelhouse Front Liner
