Front Tire Front Air Deflector Replacement

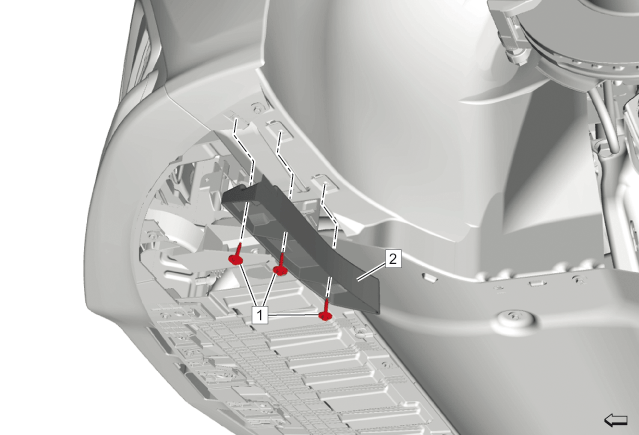

Fig 1: Front Tire Front Air Deflector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Front Tire Front Air Deflector Bolt [3x] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Front Tire Front Air Deflector
