Rear Side Door Sill Garnish Molding Replacement

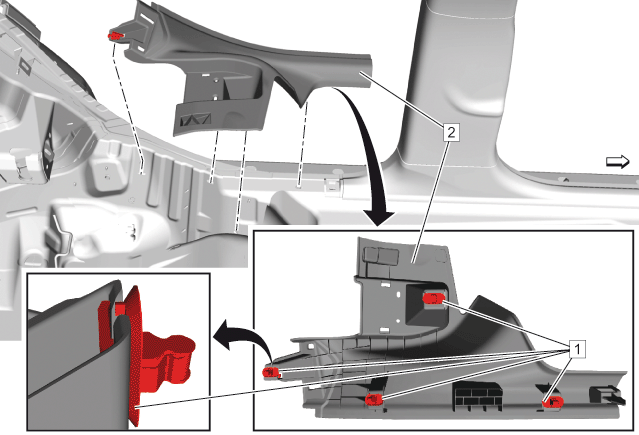

Fig 1: Rear Side Door Sill Garnish Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Rear Seat Back Bolster Replacement
1	Rear Side Door Sill Garnish Molding Clip [4x] Procedure  Use a flat bladed plastic tool to remove.
2	Rear Side Door Sill Garnish Molding
