Front Side Door Sill Garnish Molding Replacement

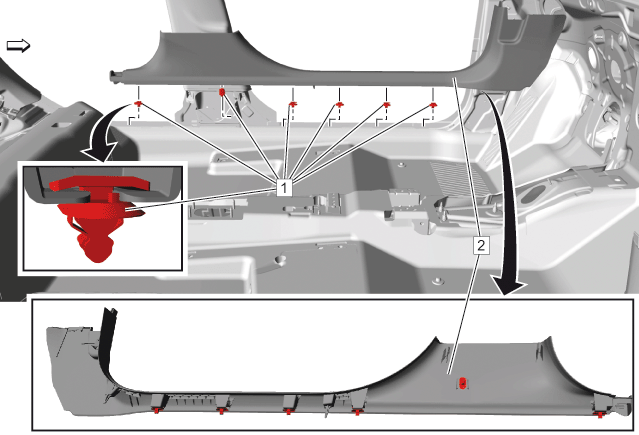

Fig 1: Front Side Door Sill Garnish Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Rear Side Door Sill Garnish Molding Replacement
1	Front Side Door Sill Garnish Molding Clip [6x] Procedure  Use a flat bladed plastic tool to remove.
2	Front Side Door Sill Garnish Molding
