Hood Primary Latch Release Cable Replacement

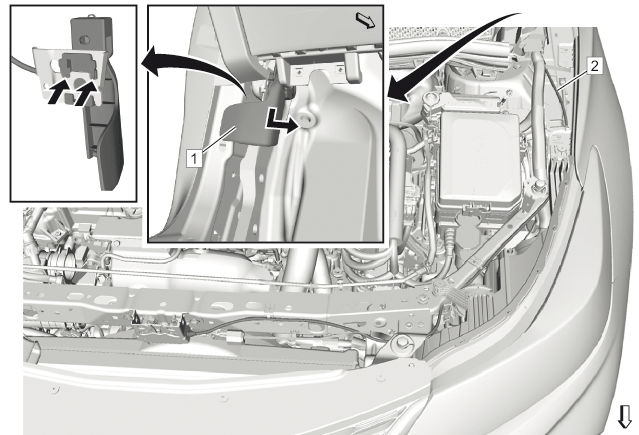

Fig 1: Hood Cable Handle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Side Door Sill Garnish Molding Replacement Radiator Air Upper Baffle and Deflector Replacement Windshield Wiper System Module Replacement
1	Hood Primary Latch Release Cable Handle Procedure Pull down the hood primary latch release cable handle. Pull carefully the hood primary latch release cable out. Remove hood primary latch release cable handle with hood primary latch release cable.
2	Hood Primary Latch Release Cable Procedure To release the hood primary latch release cable, unhook from hood primary and secondary latch.

Callout

Component Name

Preliminary Procedures

Hood Primary Latch Release Cable Handle

Procedure

Pull down the hood primary latch release cable handle.
Pull carefully the hood primary latch release cable out.
Remove hood primary latch release cable handle with hood primary latch release cable.

Hood Primary Latch Release Cable
Procedure
To release the hood primary latch release cable, unhook from hood primary and secondary latch.
