Right Side Engine Compartment Harness Routing

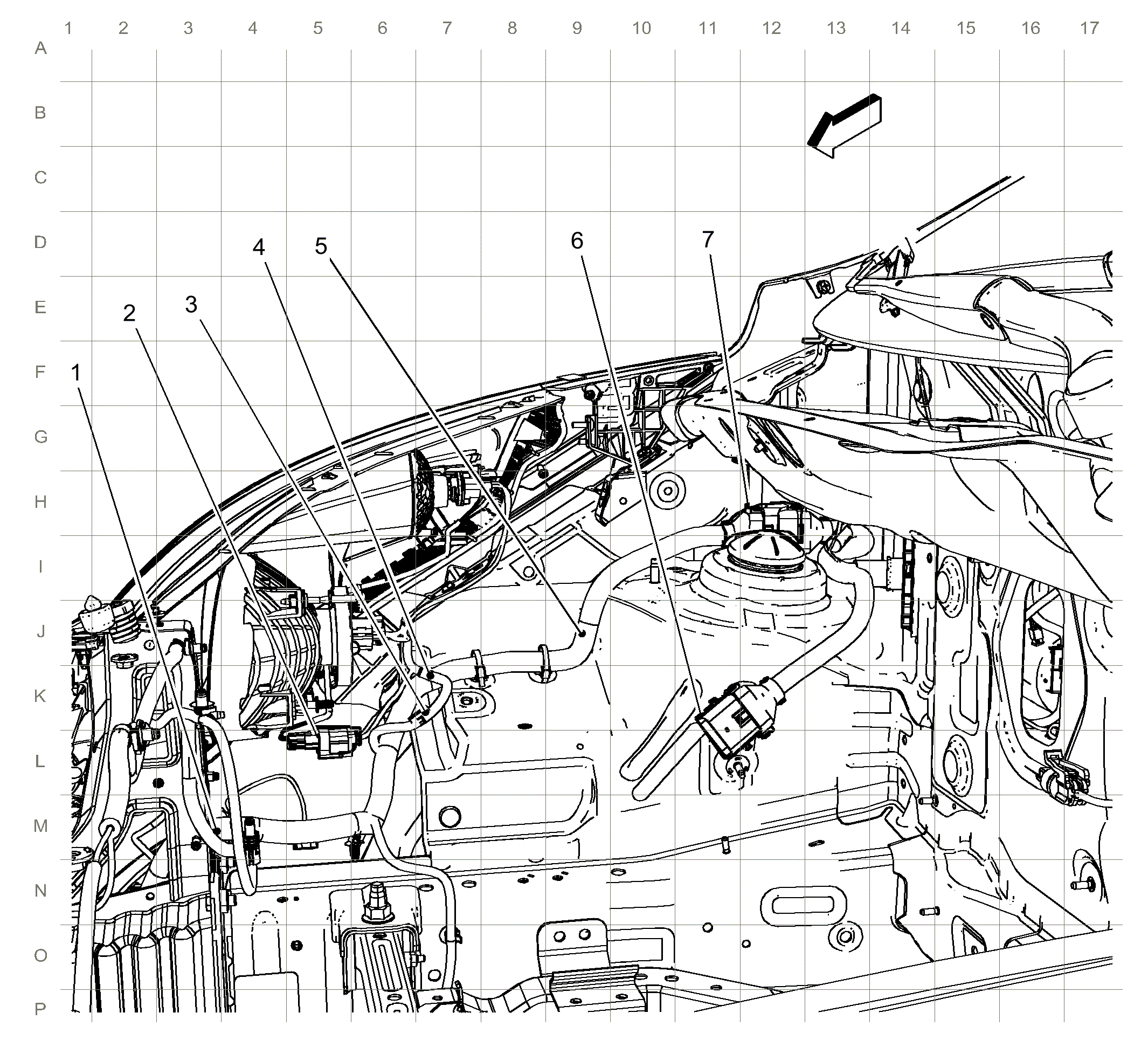

Fig 1: Right Side Engine Compartment Harness Routing
GM3212798Courtesy of GENERAL MOTORS COMPANY
Items
1:J113
2:X120 X120 Forward Lamp Harness to Right Headlight Assembly Harness
3:J110
4:J111
5:J112
6:X115 X115 Engine Harness to Body Harness
7:X106 X106 Body Harness to Forward Lamp Harness
