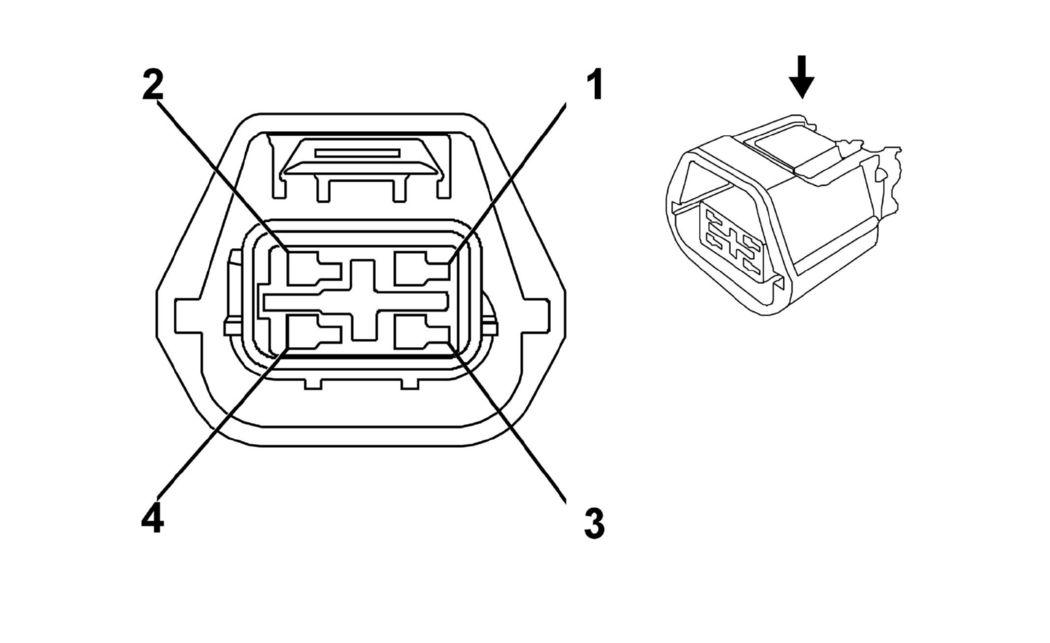

X120 Forward Lamp Harness to Right Headlight Assembly Harness
|
|
- |
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: MG641238-5
- Service Connector: 13579437
- Description: 4-Way F 050 Series (BK)
|
Connector Part Information
- Harness Type: Right Headlight
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-12 (BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
Not Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY/BN |
309 |
I |
TR6 |
Right Park Lamp Control |
1 |
0.5 |
GY/BN |
309 |
II |
TR6 |
| 2 |
0.5 |
BK |
150 |
I |
TR6 |
Ground |
2 |
0.5 |
BK |
150 |
II |
TR6 |
| 3 |
0.5 |
VT/WH |
639 |
I |
TR6 |
Run/Crank Ignition 1 Voltage |
3 |
0.5 |
VT/WH |
639 |
II |
TR6 |
| 4 |
0.5 |
BN/YE |
189 |
I |
TR6 |
Headlamp Leveling Motor Control |
4 |
0.5 |
BN/YE |
189 |
II |
TR6 |
