Left Rear of Passenger Compartment Harness Routing

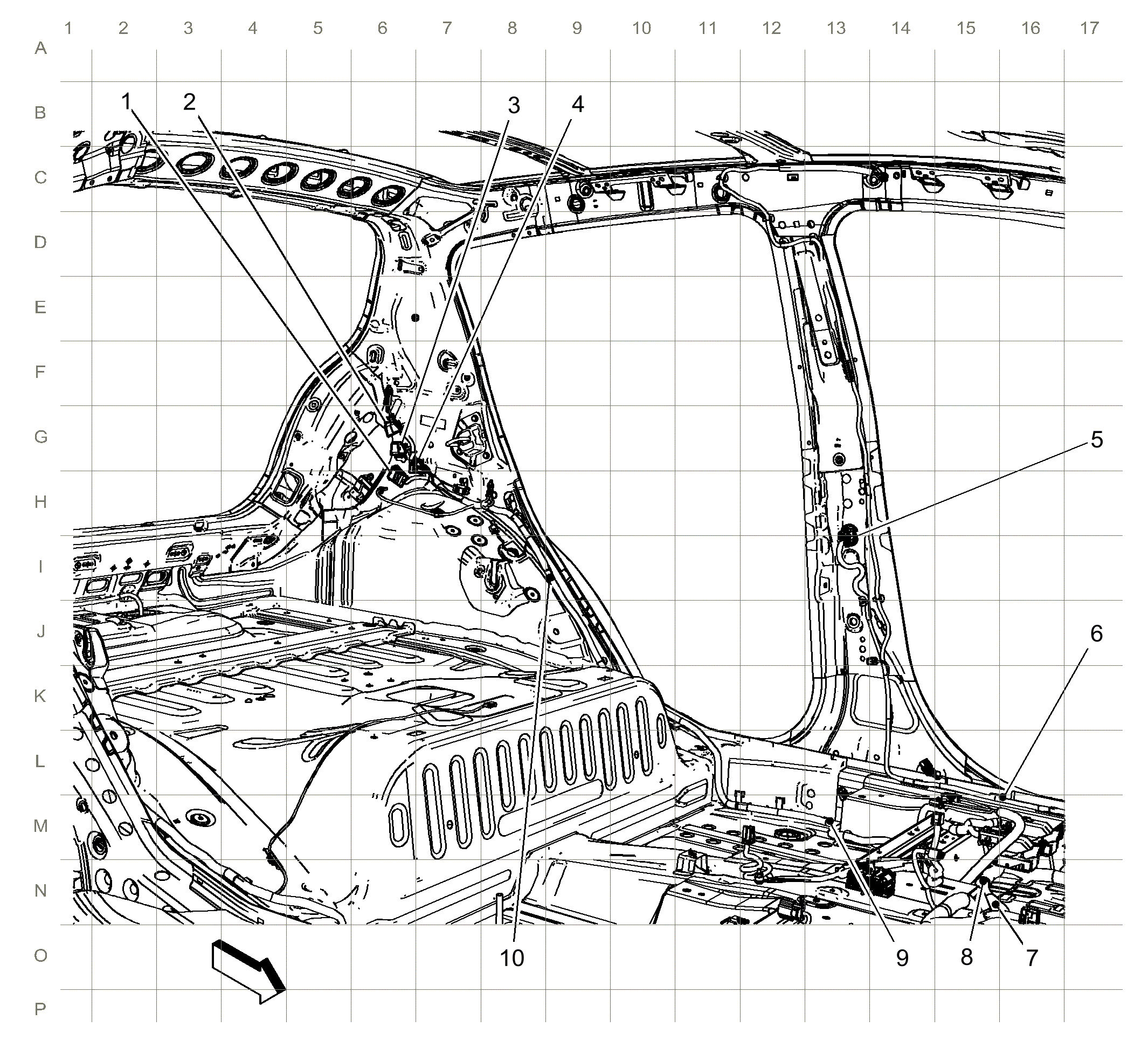

Fig 1: Left Rear of Passenger Compartment Harness Routing

Courtesy of GENERAL MOTORS COMPANY

Items
1:X900 X900 Liftgate Harness to Body Harness
2:X410 X410 Left Rear Lamp Harness to Body Harness (EF7/Z49)
3:X905 ((UVC)) X905 Liftgate Harness to Body Harness
4:X405 X405 Body Extension Harness to Body Harness
5:X700 X700 Body Harness to Left Rear Door Harness
6:J313
7:J312
8:J313
9:J317
10:J318
