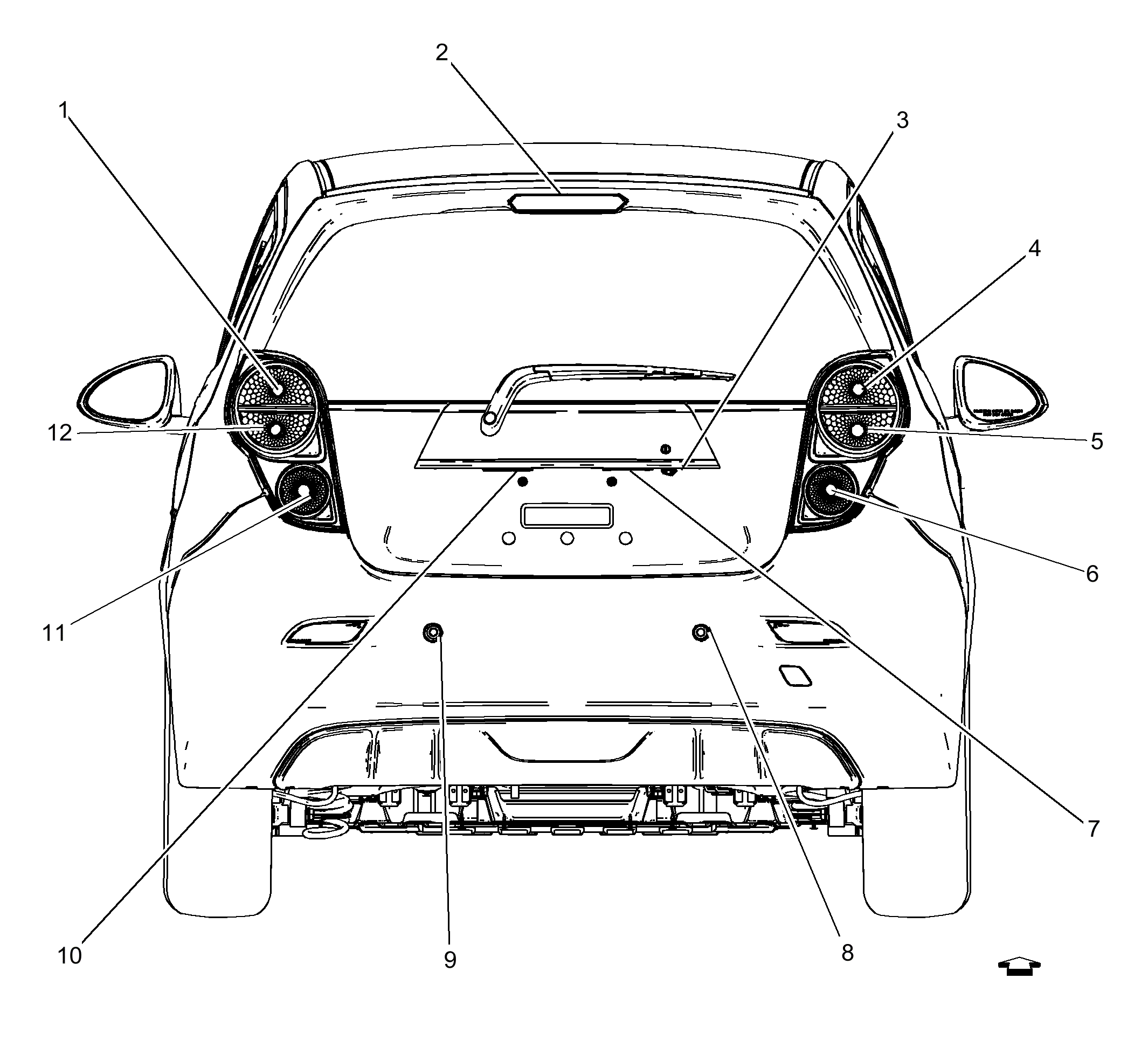

Rear of Vehicle Components
Rear of Vehicle Components
| Items |
|---|
| 1: E5AA Tail/Stop Lamp - Left E5AA Tail/Stop Lamp - Left |
| 2: E6 Center High Mounted Stop Lamp E6 Center High Mounted Stop Lamp |
| 3: B87 Rearview Camera (UV7) B87 Rearview Camera (UV7) |
| 4: E5AB Tail/Stop Lamp - Right E5AB Tail/Stop Lamp - Right |
| 5: E5AB Tail/Stop Lamp - Right E5AB Tail/Stop Lamp - Right |
| 6: E5B Backup Lamp - Right E5B Backup Lamp - Right |
| 7: E7L License Plate Lamp - Left E7L License Plate Lamp - Left |
| 8: B78H Rear Object Sensor - Right Outer (UD7) B78H Rear Object Sensor - Right Outer (UD7) |
| 9: B78G Rear Object Sensor - Left Outer (UD7) B78G Rear Object Sensor - Left Outer (UD7) |
| 10: E7L License Plate Lamp - Left E7L License Plate Lamp - Left |
| 11: E5A Backup Lamp - Left E5A Backup Lamp - Left |
| 12: E5AA Tail/Stop Lamp - Left E5AA Tail/Stop Lamp - Left |
