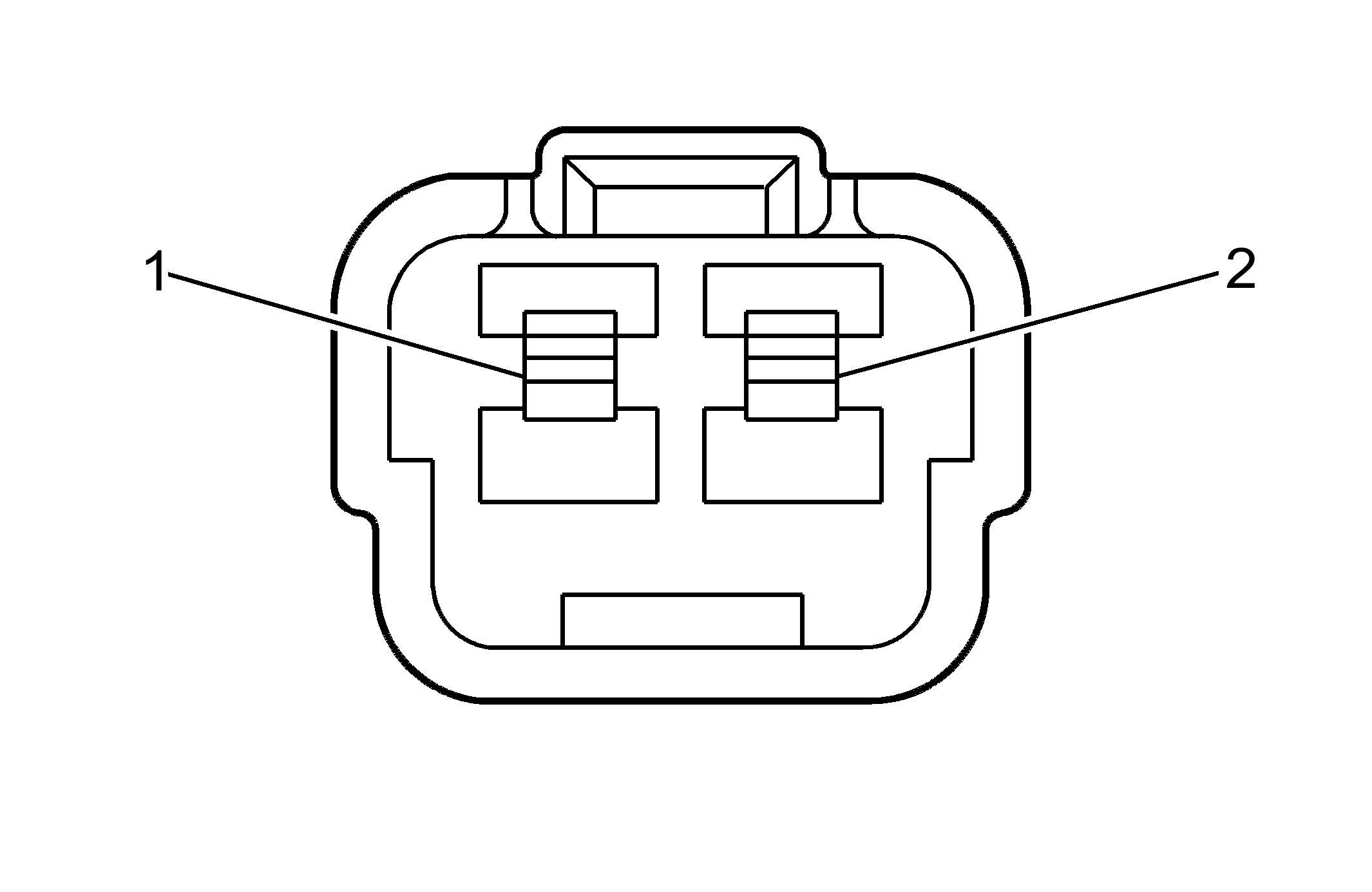

E7L License Plate Lamp - Left
|
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: MG620074
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M 2.3 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (L-BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
1:1150 |
1:Ground |
I |
1:EF7/Z49 |
| 2 |
0.5 |
GN |
2:6846 |
2:Rear License Lamp Supply Voltage |
I |
2:EF7/Z49 |
