Rear Seat Back Cushion Removal and Installation (60 percent seat)

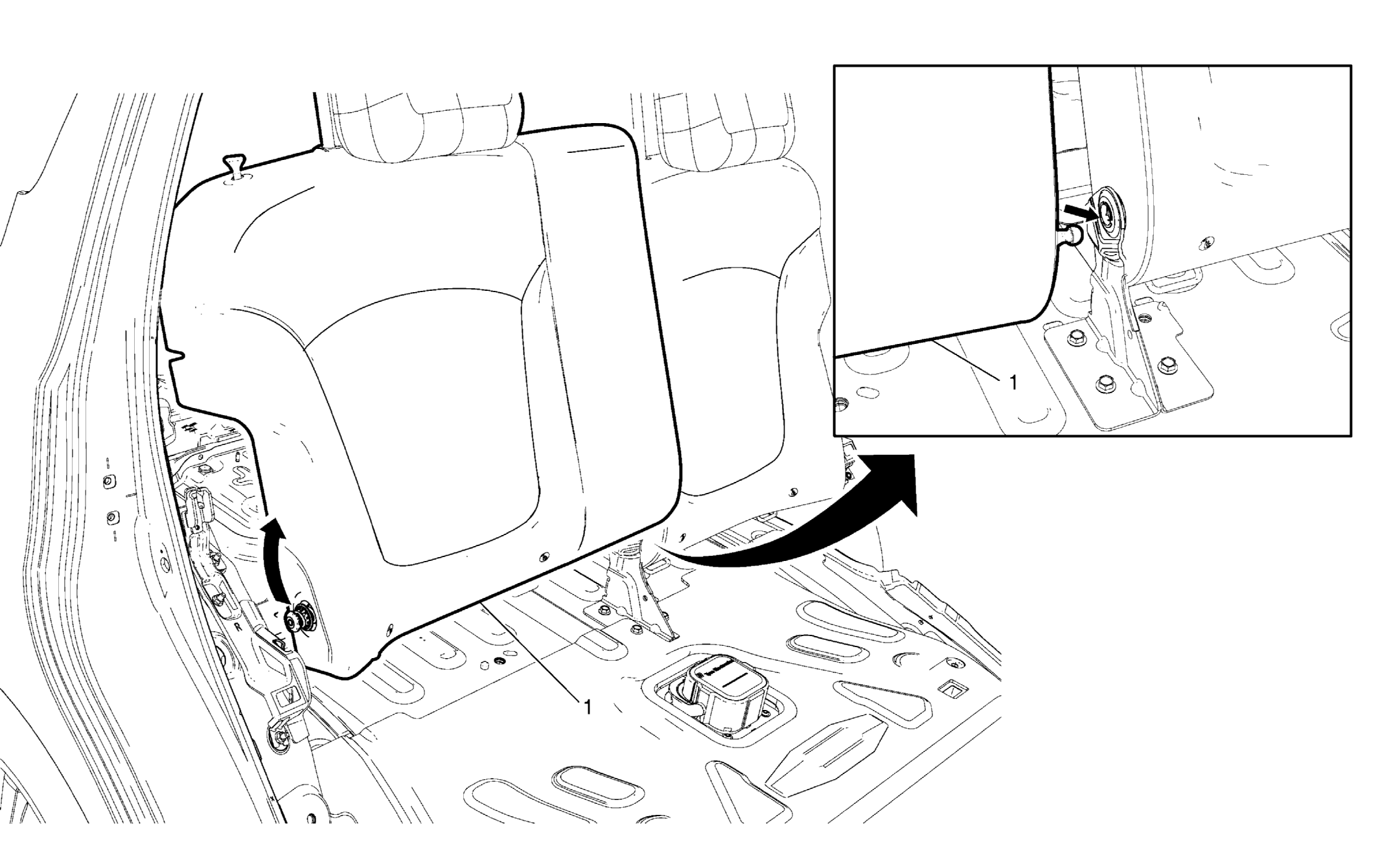

Fig 1: Rear Seat Back Cushion
GM3414110Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
  2. Remove the rear seat back bolster. Refer to Rear Seat Back Bolster Replacement .
1 Rear Seat Back Cushion (60 percent seat)

Procedure

  1. Lift up on the right of the seat back cushion to disengage the back cushion from the retainer.
  2. Pull the seat back cushion from the center hinge bracket to remove.
