Rear Seat Cushion
NOTE:

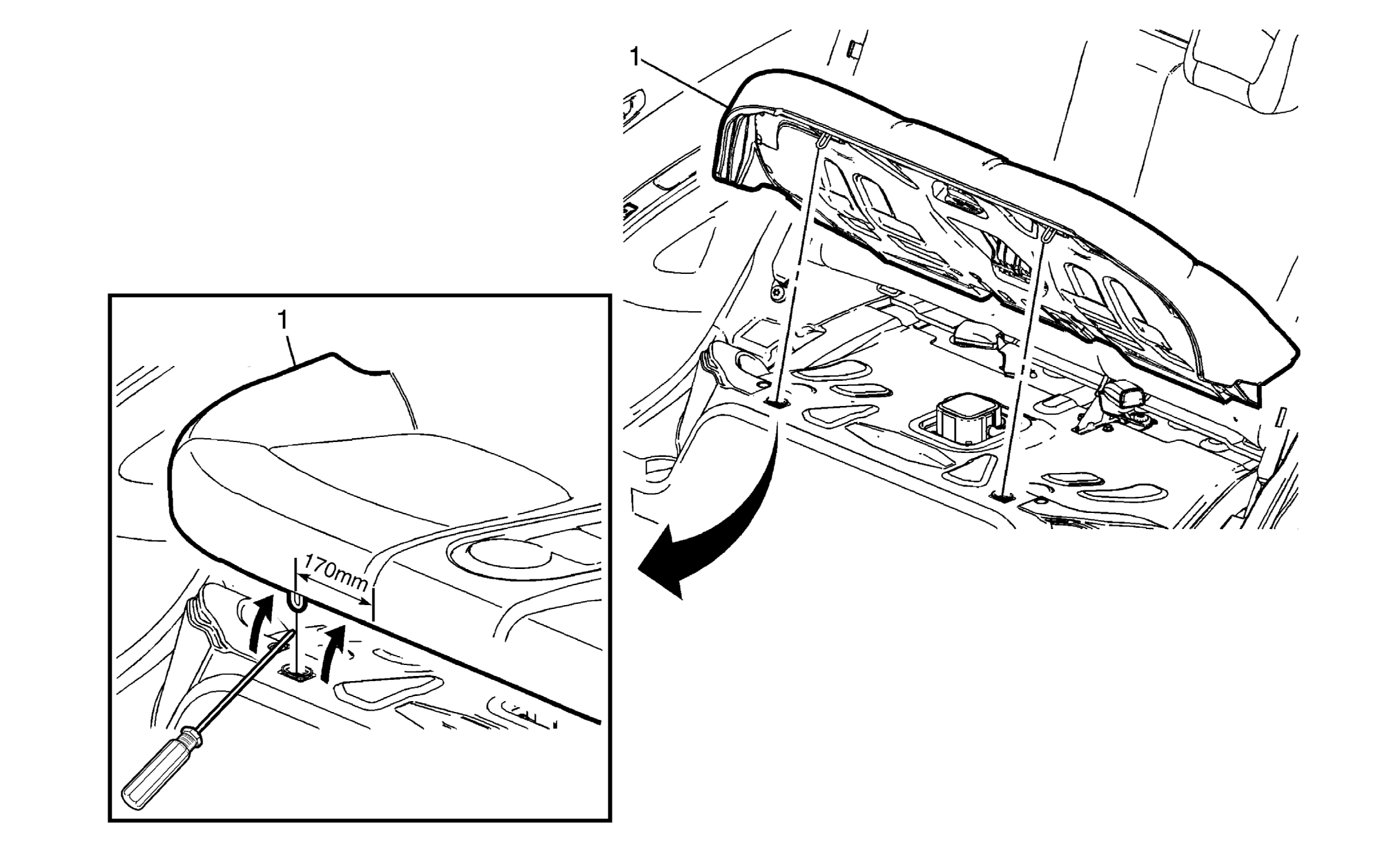

Position a large flat-head screwdriver on the side of the floor retainers in the designated areas before lifting up on the cushion.
Procedure
- Using a flat-head screwdriver, lift up on the front of the seat cushion to disengage the cushion from the floor retainers.
- Push down on the rear of the seat to unhook the cushion wire from the lower cross bar hinges.
- After the removal of the rear seat cushion, visually inspect the floor retainers for bending or breaking before reinstallation.
- Replace the floor retainers as necessary.
|
