Rear Seat Back Cushion Removal and Installation (40 percent seat)

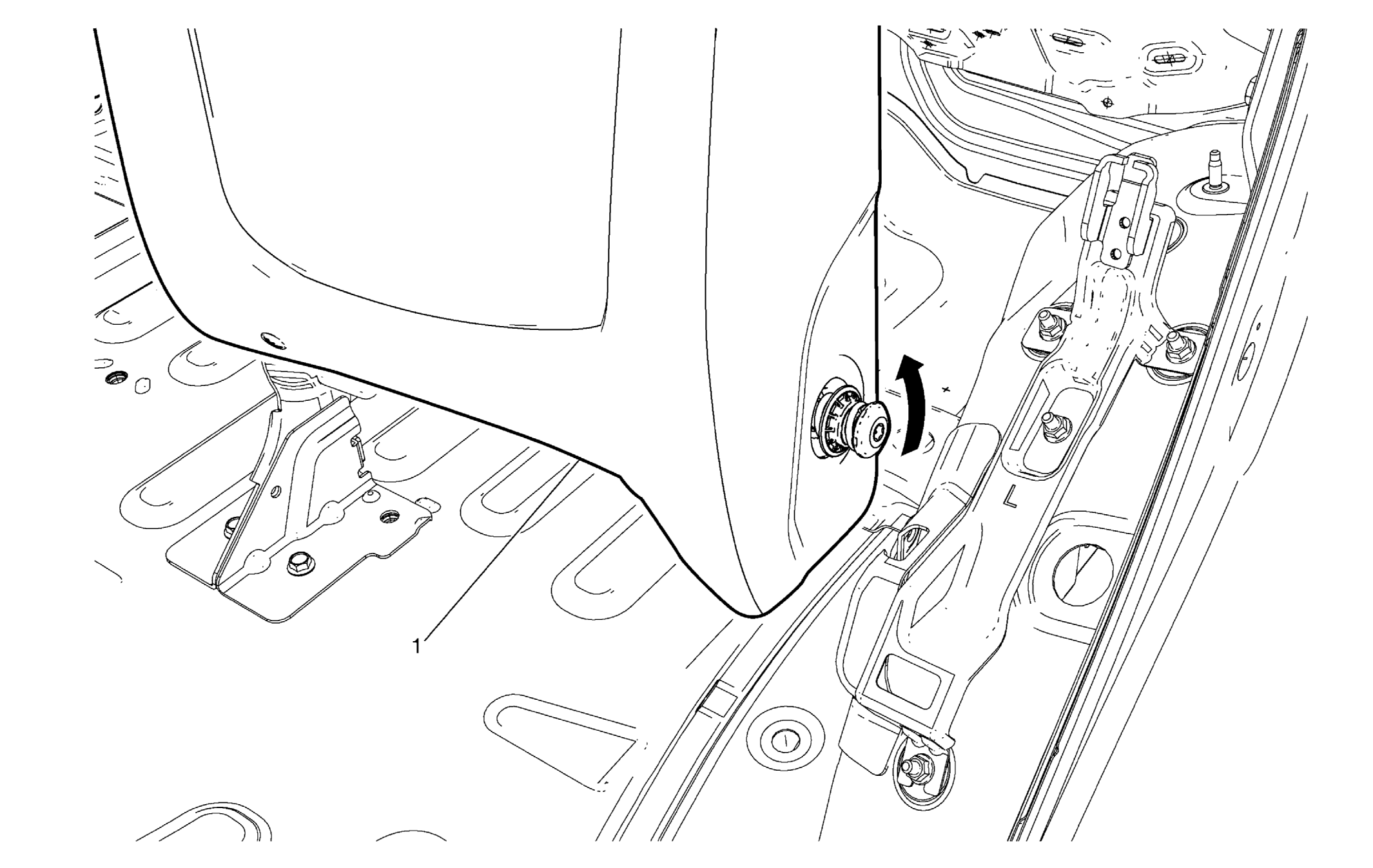

Fig 1: Rear Seat Back Cushion (40 Percent Seat)
GM3414106Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
  2. Remove the rear seat back bolster. Refer to Rear Seat Back Bolster Replacement .
  3. Remove the rear seat back cushion (60 percent seat). Refer to Rear Seat Back Cushion Removal and Installation (40 percent seat) .
1 Rear Seat Back Cushion (40 percent seat)

Procedure

  1. Lift up on the right of the seat back cushion to disengage the back cushion from the retainer.
  2. Pull the seat back cushion from the center hinge bracket to remove.
