Front Side Door Check Link Replacement

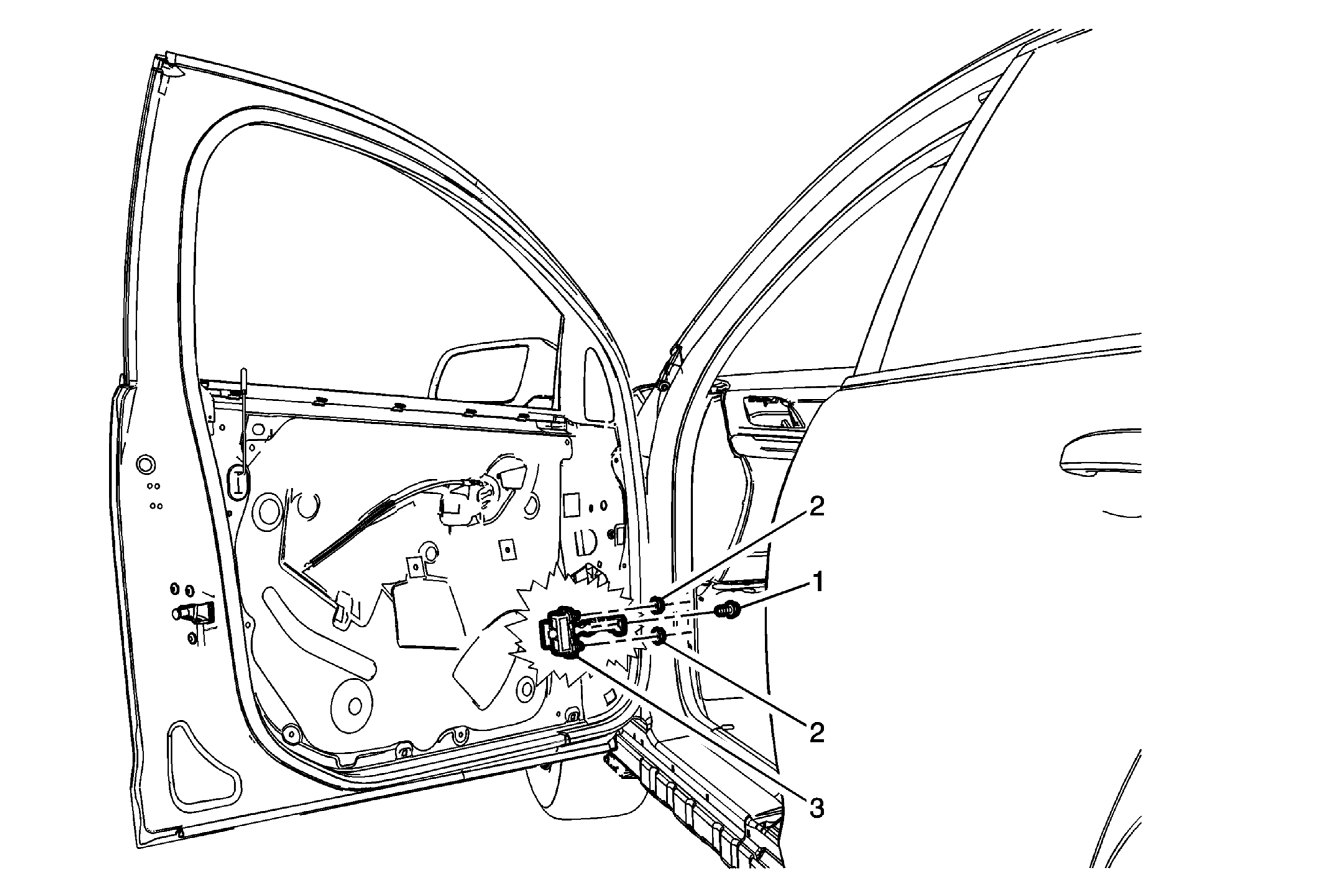

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement . |
|
| 1 | Front Side Door Check Link Bolt
CAUTION:
Refer to Fastener Caution .
NOTE:
Place the door in the full open position. Tighten 25 N.m (18 lb ft) |
| 2 | Front Side Door Check Link Nut (Qty: 2) Procedure Remove the water deflector. Tighten 9 N.m (80 lb in) |
| 3 | Front Side Door Check Link
NOTE:
Inspect the door for proper operation before installing the door trim. |
