Rear License Plate Lamp Bulb Replacement

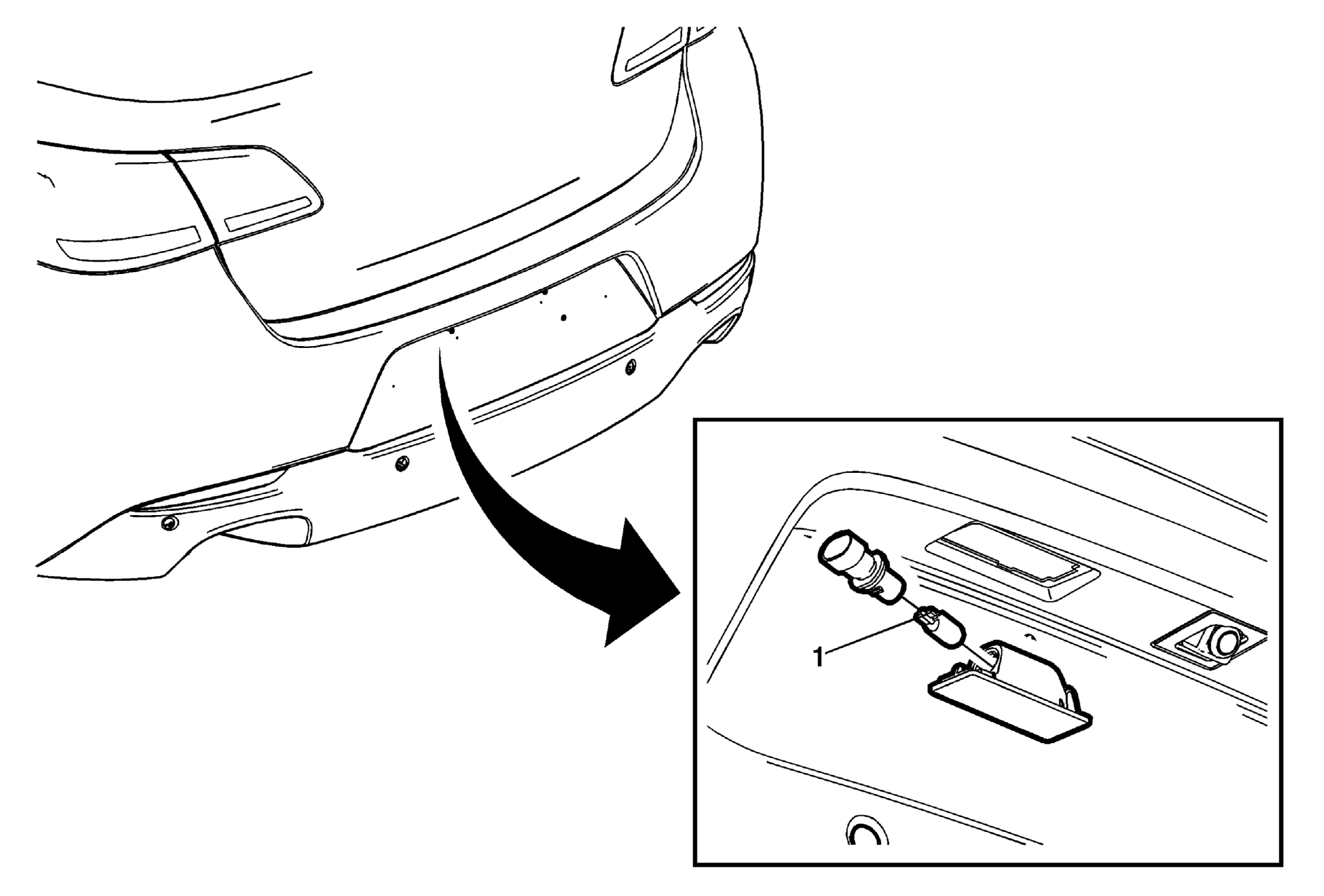

Fig 1: Rear License Plate Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear license plate lamp. Refer to Rear License Plate Lamp Replacement .
1	Rear License Plate Lamp Bulb Procedure Rotate the rear license plate bulb socket counterclockwise and pull from the rear license plate lamp. Pull the rear license plate lamp bulb straight out from the rear license plate lamp bulb socket.

Callout

Component Name

Preliminary Procedure
Remove the rear license plate lamp. Refer to Rear License Plate Lamp Replacement .

Rear License Plate Lamp Bulb

Procedure

Rotate the rear license plate bulb socket counterclockwise and pull from the rear license plate lamp.
Pull the rear license plate lamp bulb straight out from the rear license plate lamp bulb socket.
