Headlamp Switch Replacement

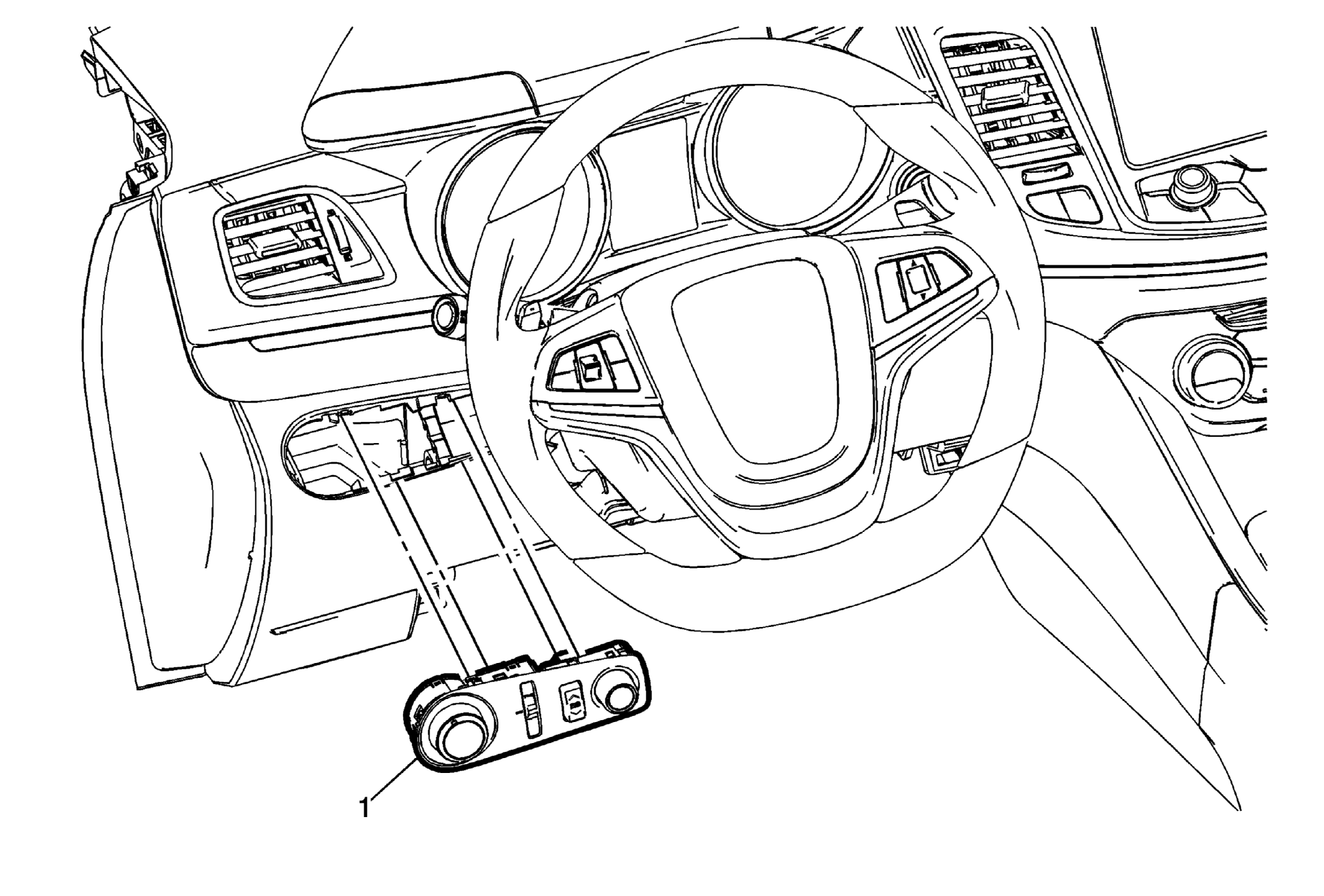

Fig 1: Headlamp Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel upper trim panel - left side. Refer to Instrument Panel Upper Trim Panel Replacement - Left Side .
1	Headlamp Switch Procedure Disconnect the electrical connector. Using the appropriate tool depress the tabs on the switch assembly to remove from the instrument panel.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel upper trim panel - left side. Refer to Instrument Panel Upper Trim Panel Replacement - Left Side .

Headlamp Switch

Procedure

Disconnect the electrical connector.
Using the appropriate tool depress the tabs on the switch assembly to remove from the instrument panel.
