Instrument Panel Upper Trim Panel Replacement - Left Side

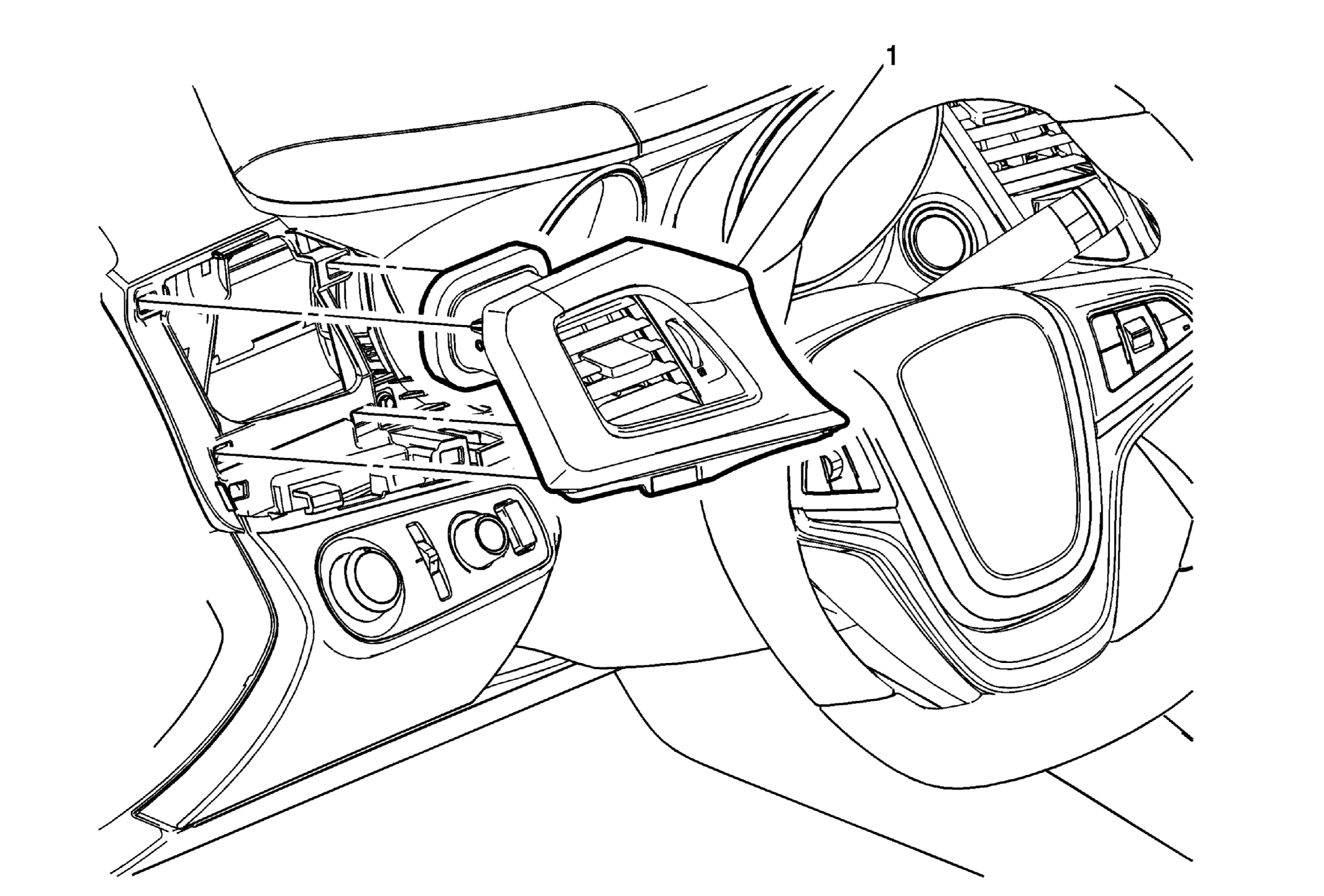

Fig 1: Instrument Panel Upper Trim Panel - Left Side
GM3402823Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the left instrument panel trim plate applique. Refer to Instrument Panel Trim Plate Applique Replacement - Left Side .
1 Instrument Panel Upper Trim Panel - Left Side

Procedure

  1. Use a flat bladed plastic trim tool in order to release the retainers securing the trim panel to the instrument panel assembly.
  2. Transfer components as necessary.
