Headlamp Replacement

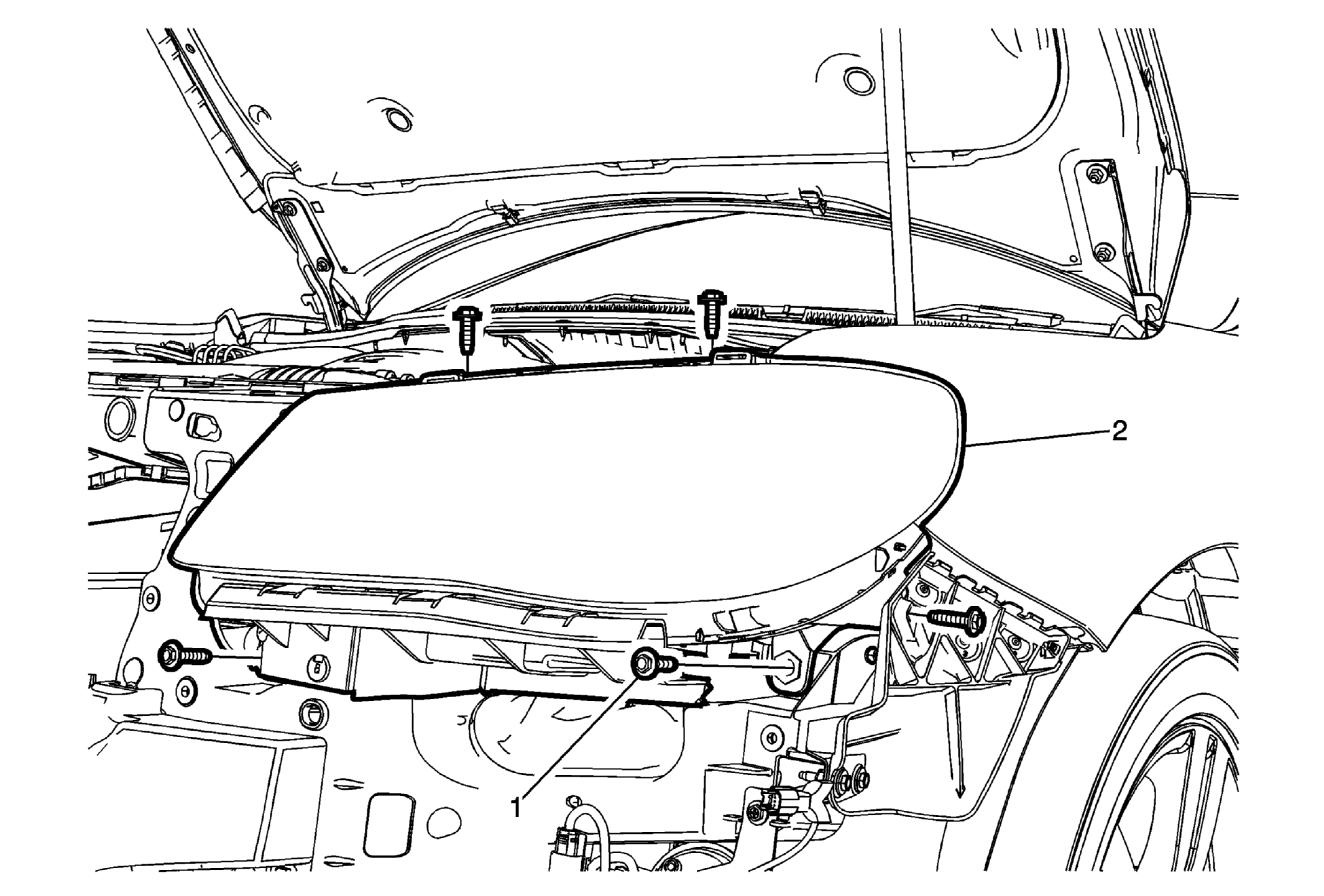

Fig 1: Headlamp
GM3289905Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  2. Remove the radiator air upper baffle and deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement (Left Side)Radiator Air Upper Baffle and Deflector Replacement (Right Side) .
1 Headlamp Screw (Qty: 5)
CAUTION:

Refer to Fastener Caution .


Tighten
4.5 N.m (40 lb in)
2 Headlamp

Procedure

  1. Disconnect the electrical wiring harness.
  2. Remove the headlamp.
  3. Aim the headlamp after installation. Refer to Headlamp Aiming .
