Front Seat Recliner Control Replacement (2-Way Manual and 4-Way Hybrid)

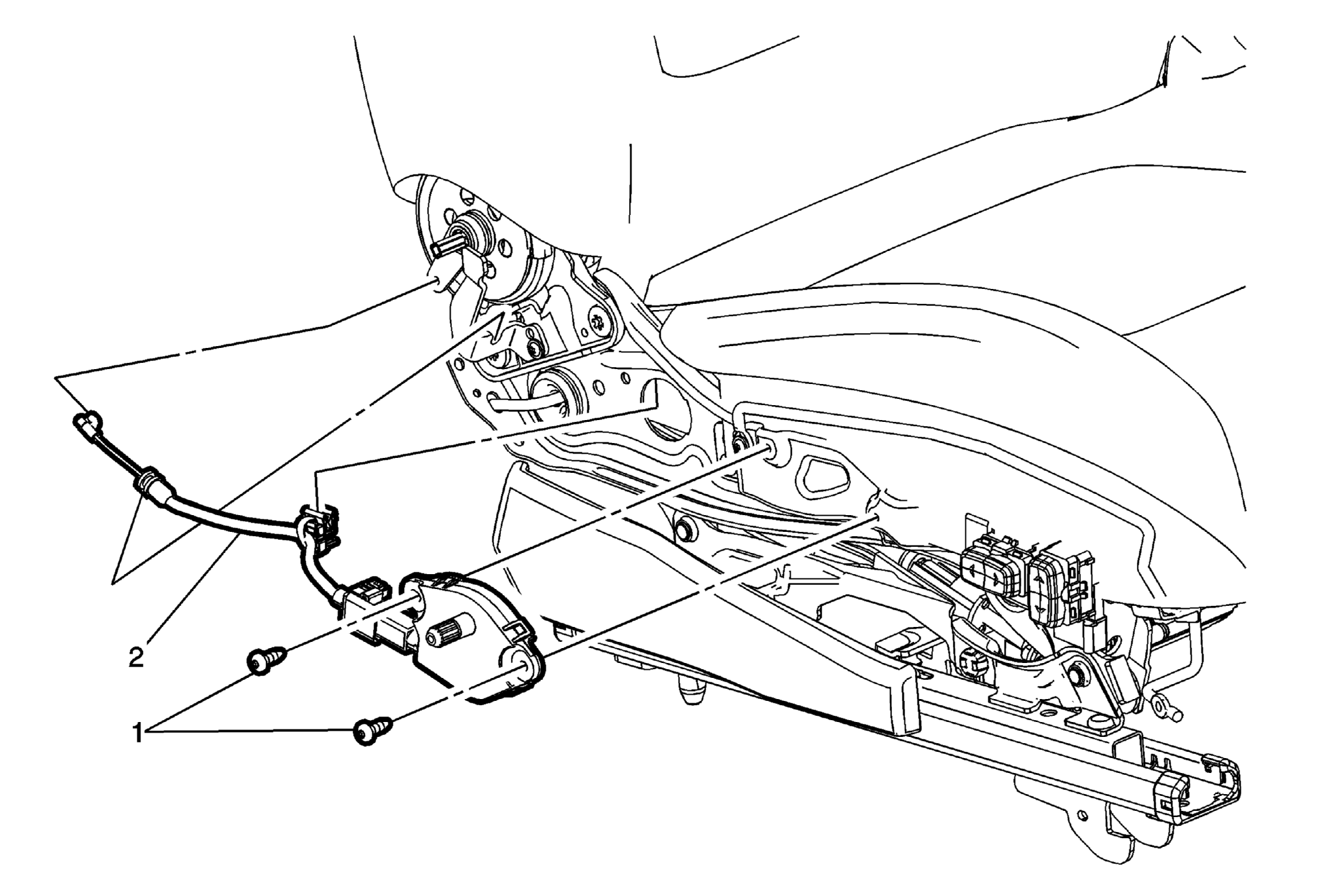

Fig 1: Front Seat Recliner Control (2-Way Manual and 4-Way Hybrid)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat cushion outer finish cover. Refer to Front Seat Cushion Outer Finish Cover Replacement .
1	Front Seat Recliner Control Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Front Seat Recliner Control Procedure Note the location and routing of the cable prior to removal in order to ensure proper reinstallation. Detach the recliner cable from the seat cushion outer finish panel bracket. Disengage the recliner cable clip from the seat cushion frame.

Callout

Component Name

Preliminary Procedure
Remove the front seat cushion outer finish cover. Refer to Front Seat Cushion Outer Finish Cover Replacement .

Front Seat Recliner Control Fastener (Qty: 2)

CAUTION:

Front Seat Recliner Control

Procedure

Note the location and routing of the cable prior to removal in order to ensure proper reinstallation.
Detach the recliner cable from the seat cushion outer finish panel bracket.
Disengage the recliner cable clip from the seat cushion frame.
