Rear Seat Armrest Hinge Replacement

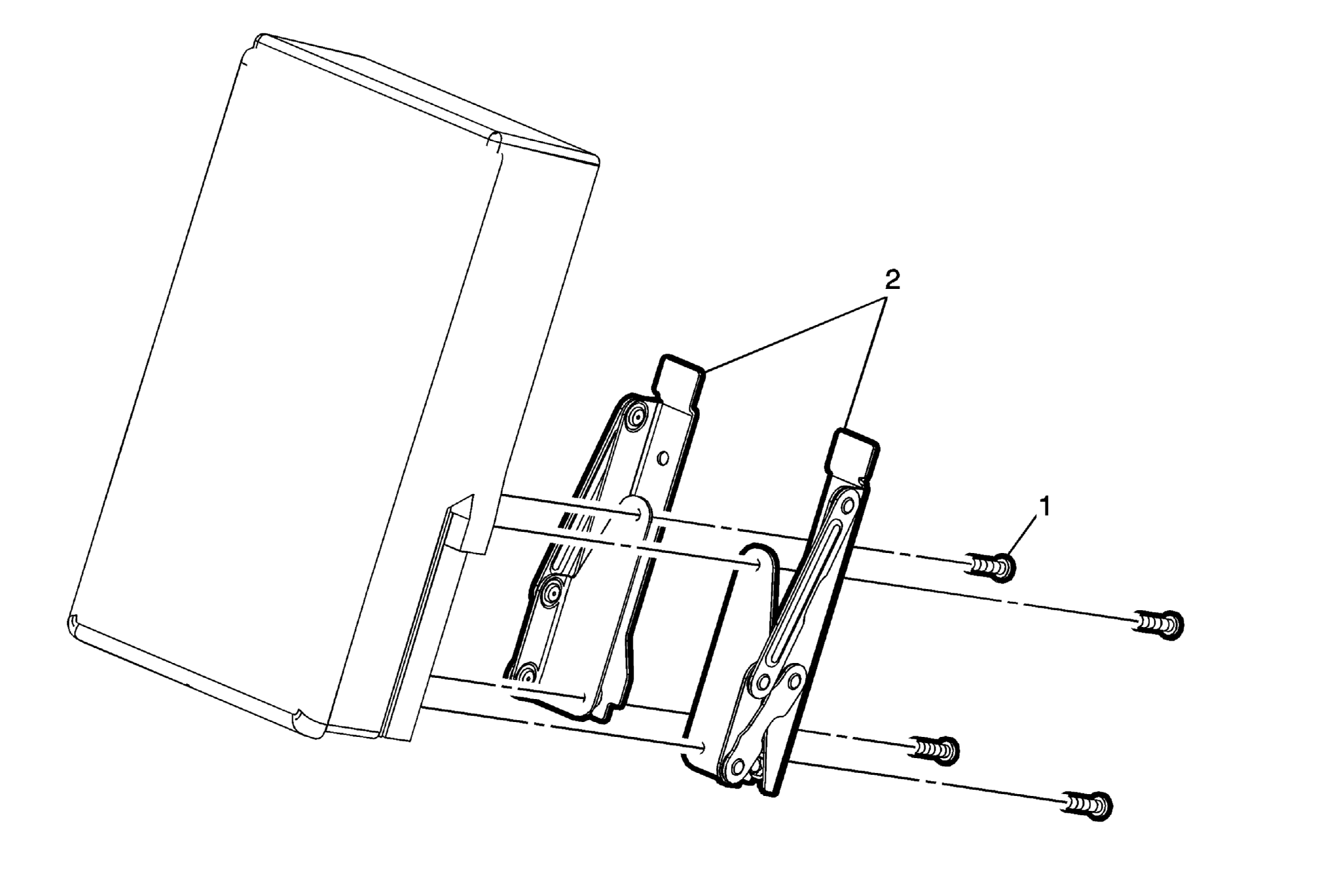

Fig 1: Rear Seat Armrest Hinges
GM3226169Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement
1 Rear Seat Armrest Hinge Fastener (Qty: 4)
CAUTION:

Refer to Fastener Caution .
2 Rear Seat Armrest Hinge (Qty: 2)
