Rear Side Door Weatherstrip Replacement - Body Side

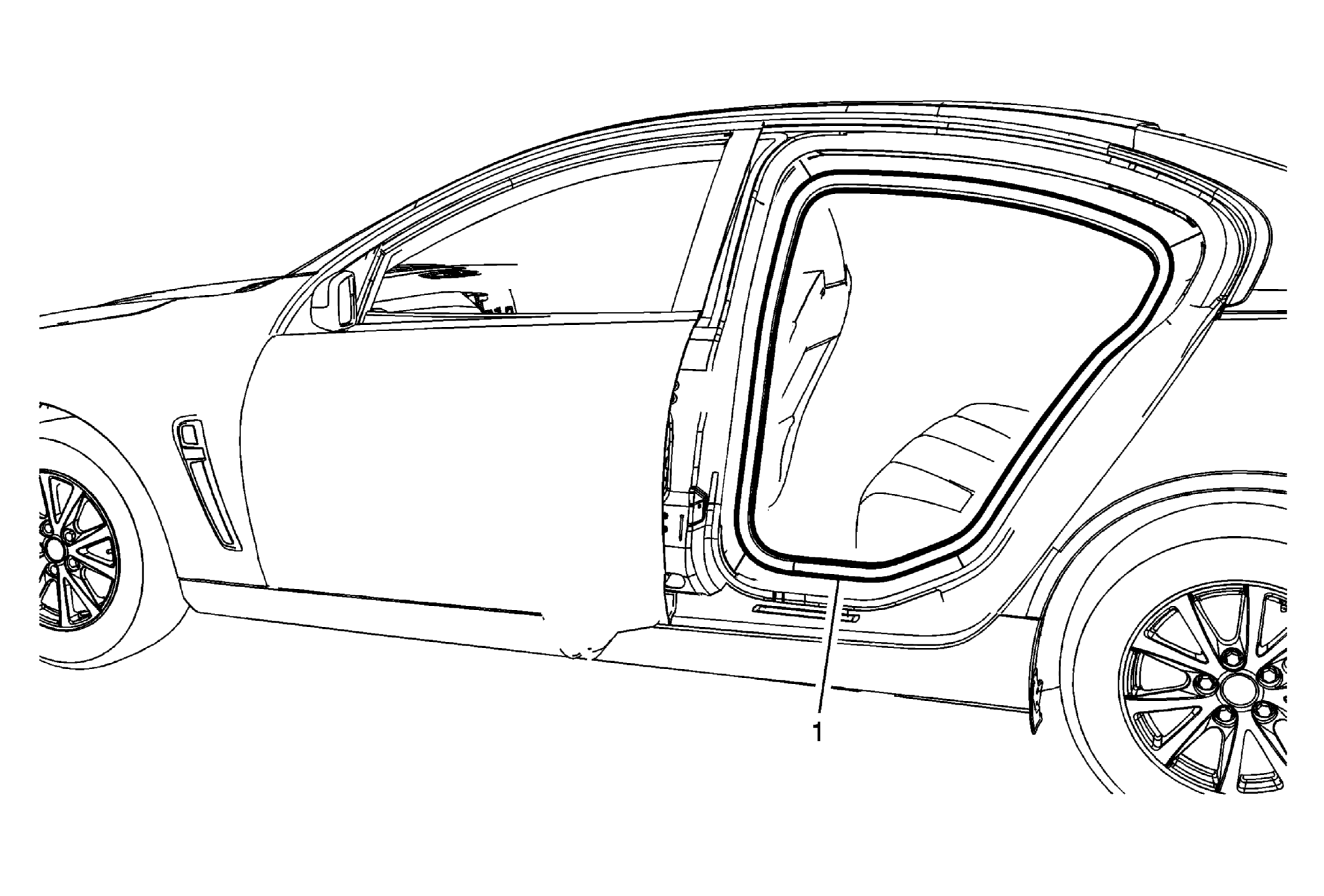

Fig 1: Rear Side Door Weatherstrip - Body Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear sill trim panel. Refer to Rear Side Door Sill Garnish Molding Replacement .
1	Rear Side Door Weatherstrip-Body Side Procedure Start at the front upper corner of the door opening and pull the weatherstrip away from the door opening flange. Position the weatherstrip in the upper corner of the center pillar. Working downward along the front edge, install the weatherstrip on the door opening flange ensuring that the carrier is fully seated in the corners. Using a rubber mallet, ensure that the weatherstrip is seated on the entire door opening flange. NOTE: Inspect the door to ensure a proper seal after the weatherstrip has been replaced.

Callout

Component Name

Preliminary Procedure
Remove the rear sill trim panel. Refer to Rear Side Door Sill Garnish Molding Replacement .

Rear Side Door Weatherstrip-Body Side

Procedure

Start at the front upper corner of the door opening and pull the weatherstrip away from the door opening flange.
Position the weatherstrip in the upper corner of the center pillar.
Working downward along the front edge, install the weatherstrip on the door opening flange ensuring that the carrier is fully seated in the corners.
Using a rubber mallet, ensure that the weatherstrip is seated on the entire door opening flange.

NOTE:

Inspect the door to ensure a proper seal after the weatherstrip has been replaced.
