Rear Side Door Upper Hinge and Lower Hinge Replacement

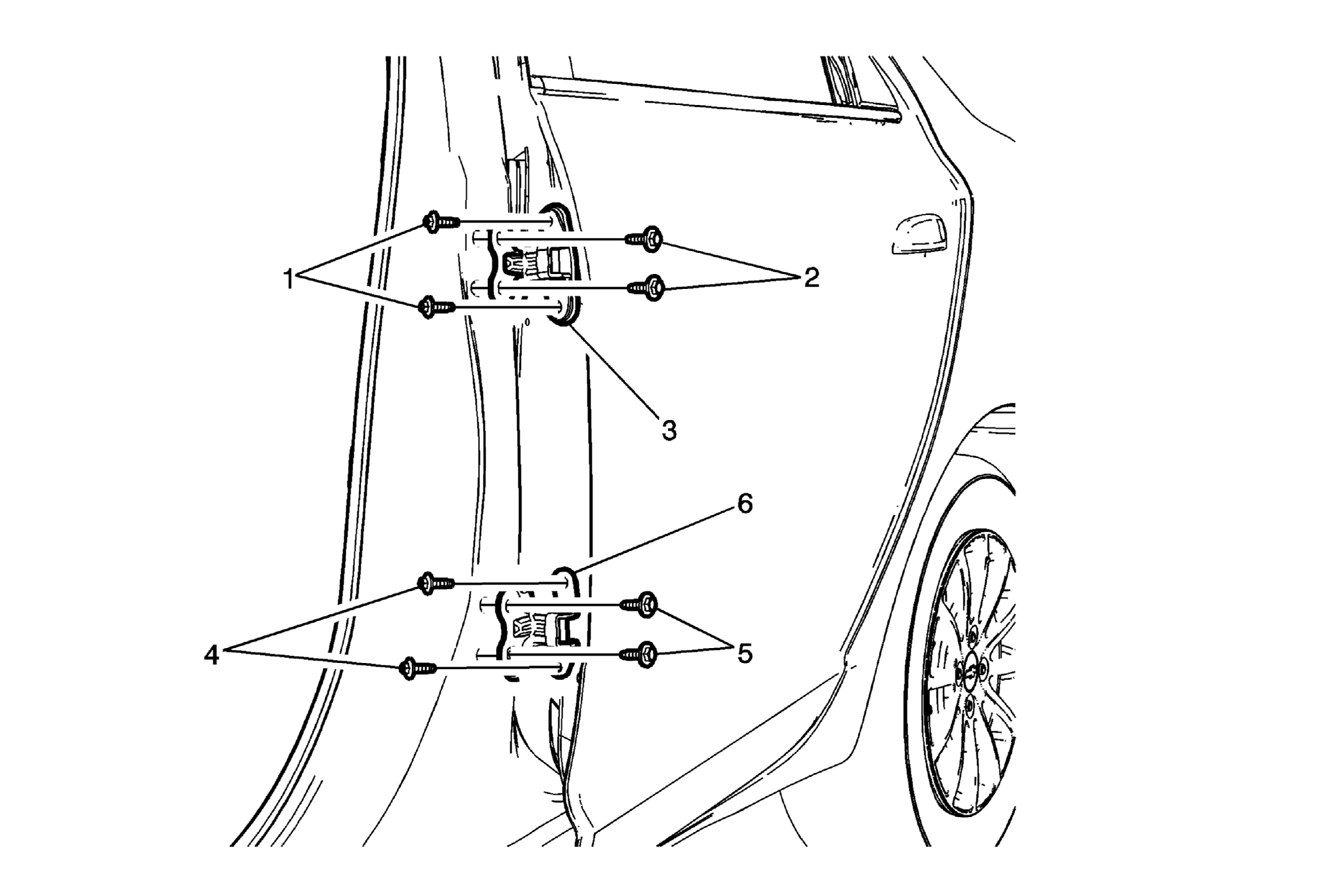

Fig 1: Rear Side Door Upper Hinge and Lower Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Upper Hinge to Door Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedures Before removing the door, apply a double layer of masking tape around the perimeter of the painted surfaces. Mark the location of the hinge being removed. Support the door before removing the hinge bolts. Tighten 28 N.m (21 lb ft)
2	Rear Side Door Upper Hinge to Body Bolt (Qty: 2) Tighten 28 N.m (21 lb ft)
3	Rear Side Door Upper Hinge
4	Rear Side Door Lower Hinge to Door Bolt (Qty: 2) Tighten 28 N.m (21 lb ft)
5	Rear Side Door Lower Hinge to Body Bolt (Qty: 2) Tighten 28 N.m (21 lb ft)
6	Rear Side Door Lower Hinge Procedure Rear door adjustment. Refer to Rear Side Door Adjustment . If the door striker needs adjust. Refer to Rear Side Door Lock Striker Adjustment . NOTE: Inspect the door for proper operation before installing the door trim.
