Hood Hinge Replacement

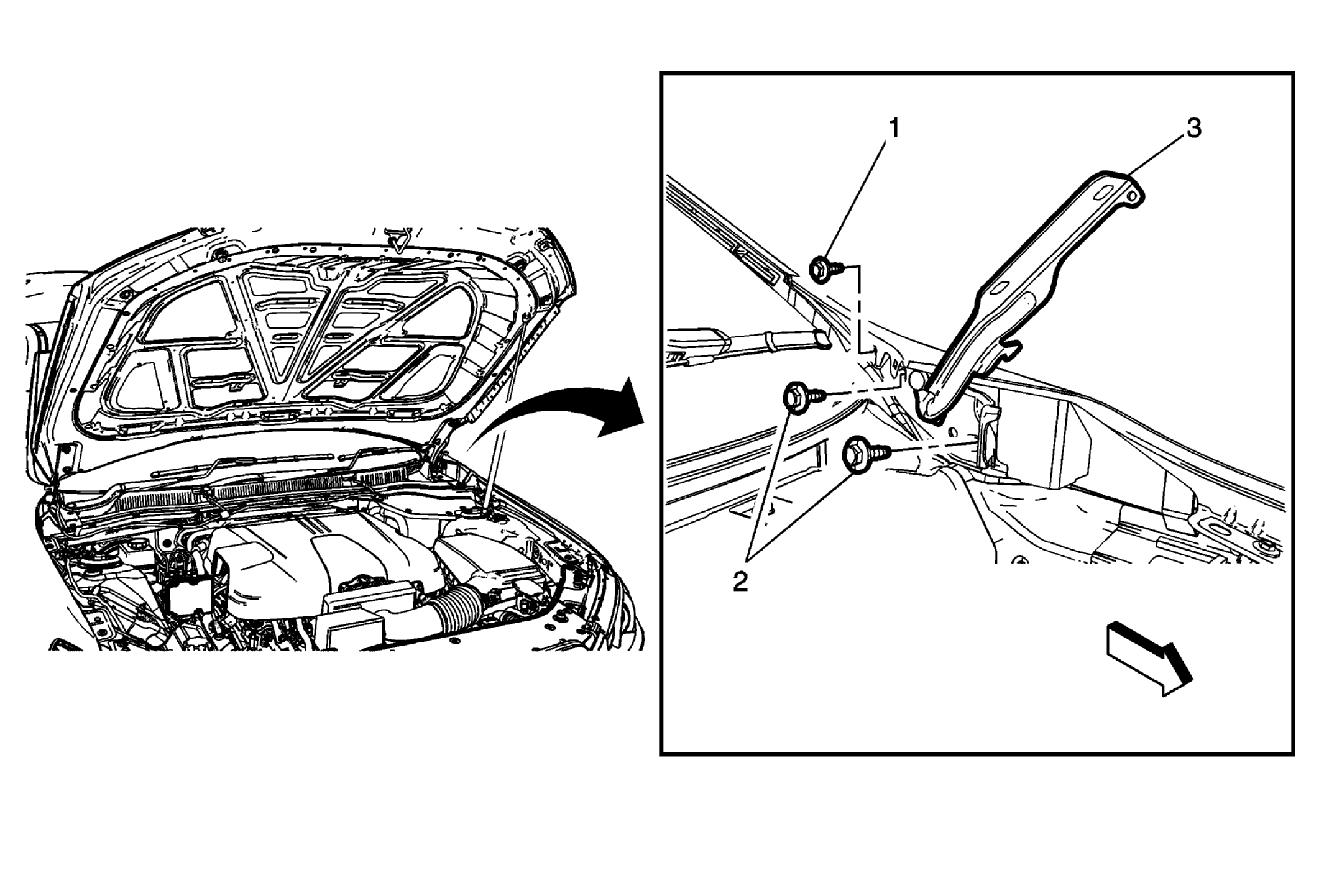

Fig 1: Hood Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the hood. Refer to Hood Replacement . Remove the windshield side reveal molding. Refer to Windshield Side Reveal Molding Replacement
1	Fender to Hood Hinge Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Hood Hinge Bolt (Qty: 2) Tighten 22 N.m (16 lb ft)
3	Hood Hinge Procedure Adjust the hood and hinge if needed. Refer to Hood Adjustment .
