Front Compartment Side Rail Wheelhouse Panel Baffle Replacement

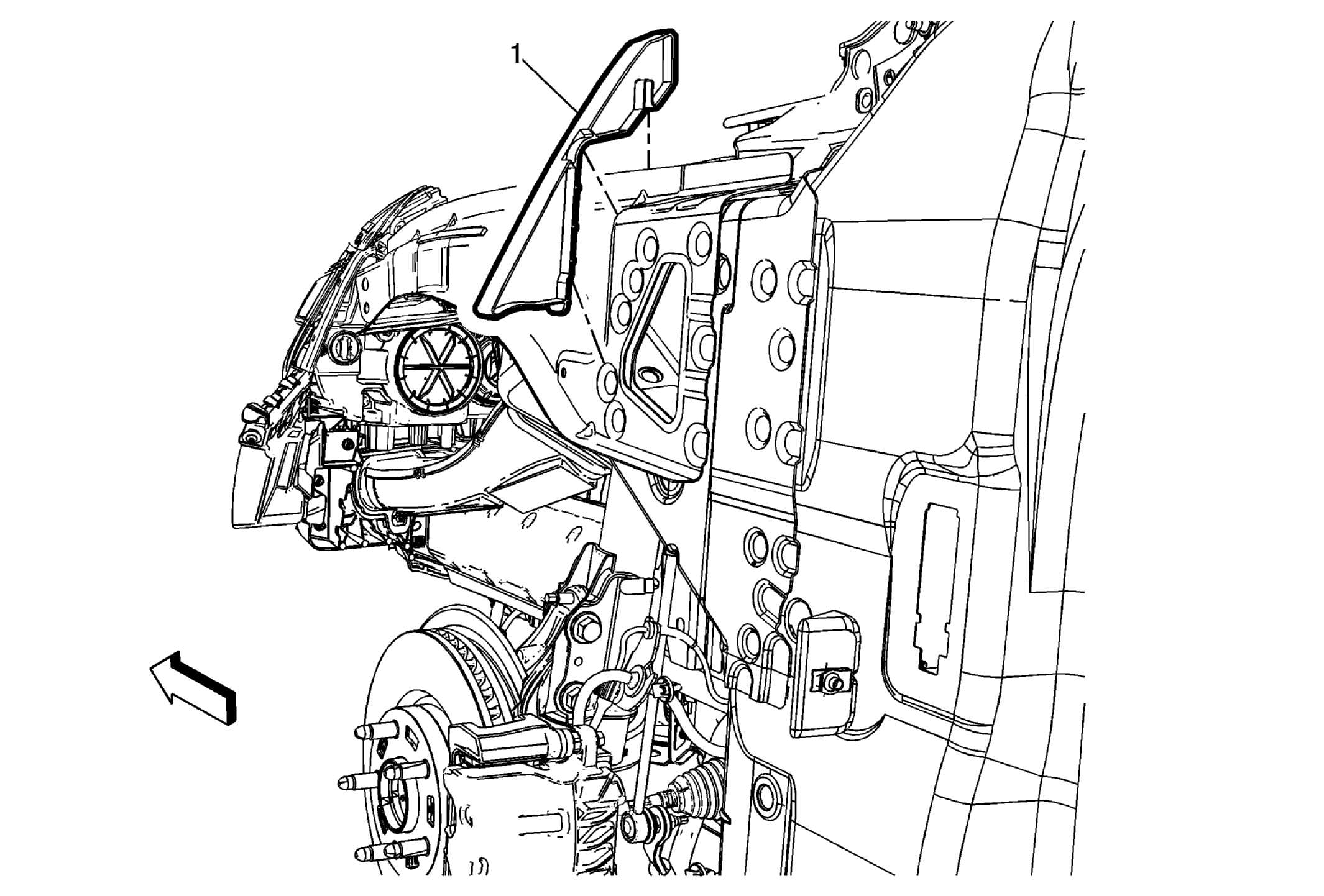

Fig 1: Front Compartment Side Rail Wheelhouse Panel Baffle
GM3228147Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front fender. Refer to Front Fender Replacement
1 Front Compartment Side Rail Wheelhouse Panel Baffle

Procedure

  1. Carefully pull the lower half of the front compartment side rail wheelhouse panel baffle to release the pins.
  2. Pull the front compartment side rail wheelhouse panel baffle upward.
NOTE:

When reusing the fender, you need to touch up paint the location of the old baffel seal to prevent corrosion from developing on the fender.
